The scale of your drawing plays a critical role in how information and symbols are displayed, how they will appear in the final product, and, in the end, how they will plot.



You should never need to set the Land F/X Plot Scale to 1:1. You may draw at 1:1 in Model Space, but the Plot Scale refers to the scale for Paper Space for the proper sizing of text and hatches.

Make it a habit to ALWAYS set your units and scale before you begin work on a drawing. Taking the time to plan and set your units and scale early will prevent unnecessary stress in the future – not to mention save you hours of time.

Scale Overview

Most of your work takes place in Model Space. However, it's also important to translate your drawing to a viewport in Paper Space. This will allow you to view a portion of the site at a certain scale when you plot your drawing.





Be sure to review how your units are formatted in AutoCAD – an important consideration with scaling. Your drawing might be scaled in architectural or engineering units, with one unit being one inch, or decimal units, where one unit represents one foot or one meter, as determined by your setting of the insertion scale.







You can check your units by typing Units in the Command line and pressing Enter to open the Drawing Units dialog box.



The Updated Plot Scale Dialog Box (August 2025): Why We Did It



Mainly, it was to encourage and support correct CAD knowledge – that a CAD user should know about the Drawing Units dialog box and be able to access and operate it.

As we were struggling to help users fix a scaling issue, we found some who were completely unaware of the Drawing Units dialog box. And so in a way, our previous version of the Plot Scale dialog box was encouraging bad CAD practice by preventing the awareness of such a crucial CAD dialog box. And since it’s one of the simpler CAD dialog boxes, just seemed better to force users to learn how to operate it.

–Jeremiah Farmer, Land F/X CEO, co-founder, and head developer

How to Set the Scale & Units

Set the scale once and forget it; all objects in your drawing will automatically be scaled correctly. You can also set multiple scales in one drawing. More information



Open our Scale tool:

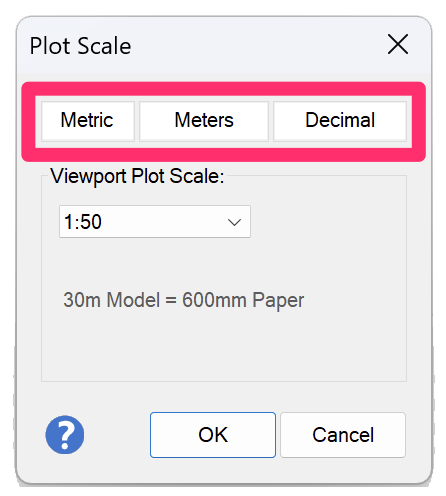

The Plot Scale dialog box will open. You'll see three buttons at the top of the dialog box reflecting the current drawing units setting. For example, if your drawing units are set to decimal feet in the Imperial system, the buttons will read Imperial, Feet, and Decimal. If your drawing units are set to decimal meters in the metric system, the buttons will read Metric, Meters, and Decimal.







Changing the Drawing Units

To change the drawing units settings, click any of the three buttons at the top of the Plot Scale dialog box (pictured above). If your units are set correctly, you can begin setting your plot scale.

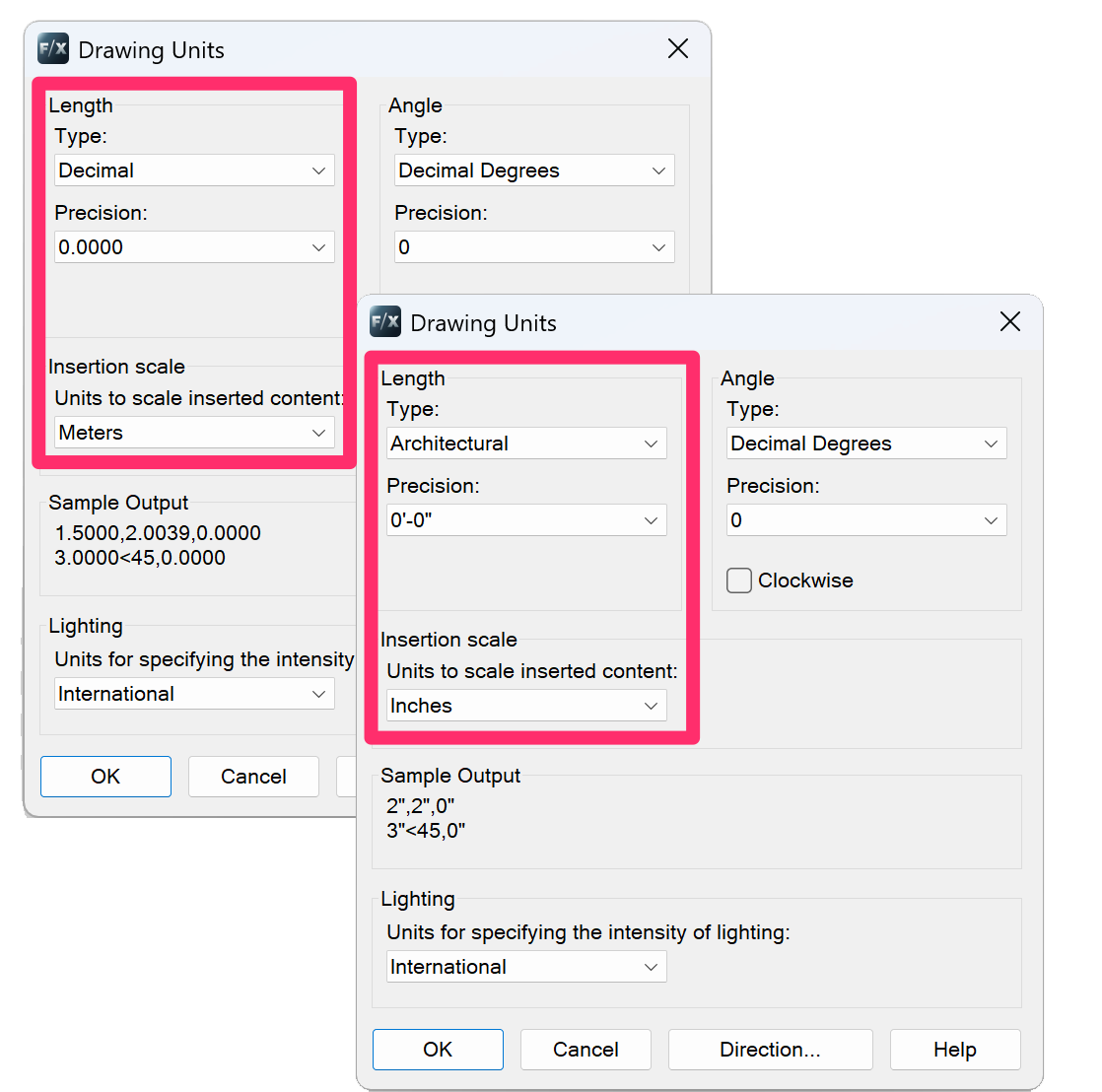

The Drawing Units dialog box will open when you click any of the units setting buttons.







Setting the Plot Scale

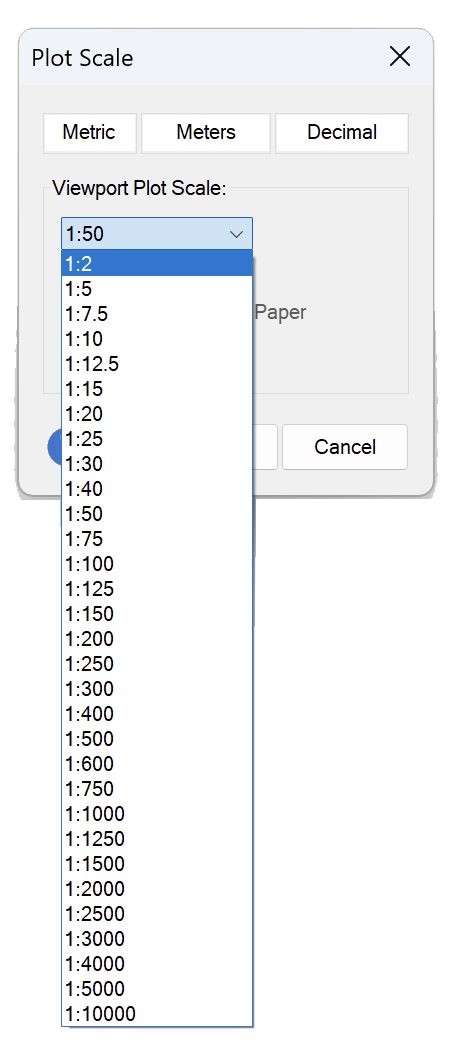

To set the plot scale for your drawing, select your intended scale from the Viewport Plot Scale menu in the Plot Scale dialog box. The scale options you see in this menu will depend on your current drawing units setting.







Select your intended scale from the menu, then click OK to set it in the current drawing.





Setting the Scale in a Paper Space Viewport

You can also use our Scale tool to set the plot scale for a Paper Space viewport.





To set a scale in a Paper Space viewport, double-click within the viewport to make it active.













Center your view in the viewport, and make sure it's set to a 1:1 scale. You can then use the Scale tool to set the scale for that viewport.





You'll be asked whether you want to scale the active viewport. Click Yes. The viewport will be scaled as you've set it.







Center your view in the viewport again, taking care not to zoom in or out.







Unitless Drawings

Some offices have a standard of setting their drawings to Unitless, which presents a problem for Land F/X because it cannot function properly without knowing the drawing units. In this case, the center unit box reading Unknown will be red, and you'll see an Incompatible unit setting detected message.







In the past, when setting the scale in a unitless drawing, the system actually assigned a unit setting to the drawing. With our updated, more transparent Plot Scale, you're asked to set that unit yourself. You're welcome to change the units back to Unitless in the Drawing Units dialog box, if required by your office.



Note that we've seen the standard of unitless drawings arise from a need to work around an AutoCAD bug that scales files when you insert them. However, if you're using our fxREF tool to attach drawings as Xrefs, it does so for you.

Annotative Scaling







You should only use Annotative Scaling if you want to show your plan at multiple scales.



If you don't need to display your plan at multiple scales, a better practice would be to define your scale before placing labels. In the future, if you aren't preparing multiple scale views of the same site, there is frankly no reason to use annotative scaling. You could avoid this option altogether – along with all the potential hassle it can bring.

Want more reasons why you shouldn't be using Annotative Scale? Find out here >



Turn Annotative Scaling On/Off

Want to use Annotative Scale for your planting and/or site hatches? Here's how.

Rescale Objects

Correcting the Scale of Objects in Your Drawing After Changing the Scale

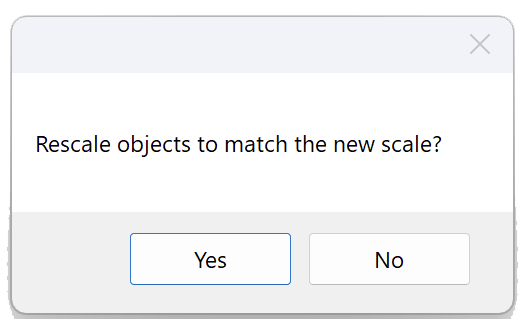

Changing the scale will not change the scale of objects that already exist in your drawing. Therefore, if you change your scale, you will need to correct the scale of all plants, Reference Notes, and any other objects that were in the drawing before you changed the scale.



Here's how to correct the scale of existing objects:















Change the scale in the Properties panel to your new scale.









The new scale will be applied to all selected objects. (You may have to repeat these steps a few times to rescale all existing objects, but it's quicker than redoing them one by one.







For future reference, this is a great opportunity to remember why it's so important to set the scale before beginning work on a drawing: So you don't run into issues like this!



Scaling & Units Theory

Scale can be a confusing issue. Here are some tips:



Model Space is without scale (or it is drawn at full scale), and scale is not important until you want to enter text, dimensions (which require text and arrow sizes), callouts, hatch patterns, etc., or simply want to plot it. In these cases, scale (specifically, plot scale) becomes extremely important. The plot scale will determine how you will plot the Model Space in the Paper Space layout tab.





Metric unit drawings are quite simple. In the Drawing Units dialog box (reached by typing UNITS in the Command line), the Unit Type is formatted for decimal units with Insertion Scale – or what one AutoCAD unit is understood to be – set at Meters. While you can format your units and set the scale for Millimeters in Model Space, this is undesirable for the size and math required for site work. If you receive a CAD file from another source with the Unit Type set to millimeters, you are best served to reduce the plan by 1/1000 and reformat the units for meters. This is your choice, however.

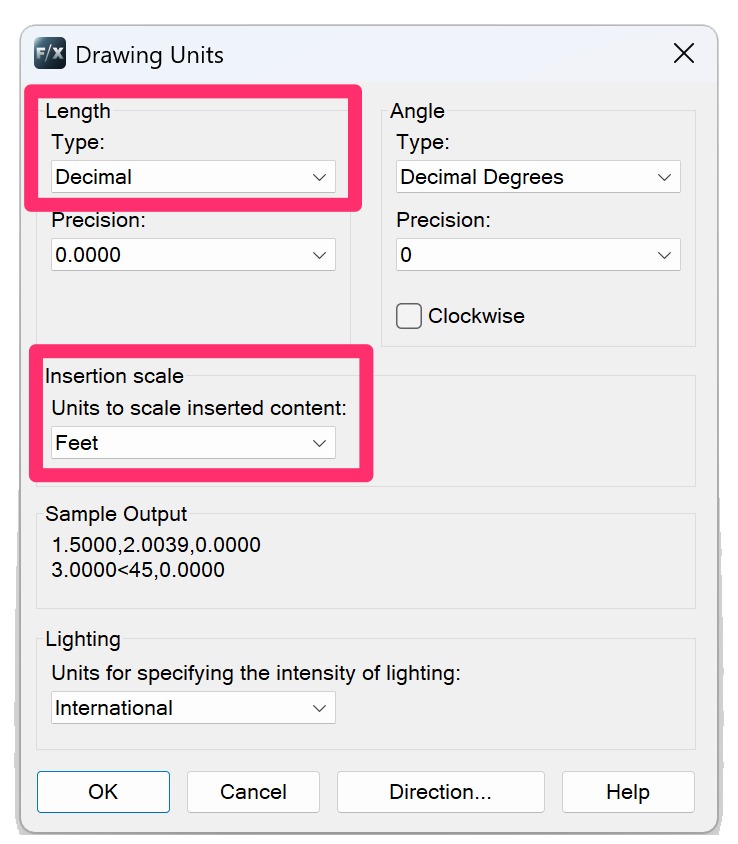

With Imperial Units, you would set the Unit Type to either Architectural or Engineering. The Insertion Scale should be set to Inches for each of these unit types. A common practice for civil engineers and surveyors is to set the Unit Type to Decimal, and the Insertion Scale to Feet. In this case, one AutoCAD unit is assumed to be one foot).





In some cases, you won't know the drawing units, which will affect how the scale is to be set. In this case, you may just assume they are set correctly. Imperial plans offer two possible options:

• Decimal Units, commonly used by civil engineers and surveyors. With this setting, one AutoCAD unit is understood to represent 1 foot, even though an AutoCAD unit is technically unitless. This setting can prove extremely handy for various civil or survey functions, as it doesn't require you to enter a unit symbol (') when entering numbers for distance or direction.

• Engineering or architectural units (Imperial Units), often, though not always, are used by architects and many landscape architects. This is where one AutoCAD unit represents 1 inch, and is expressed with decimal inches for engineering (for example, 10'-4.625”) and with feet and Imperial inches for architectural (for example, 10'-4 5/8”).

• These settings commonly cause confusion in office situations. The civil will often give the building architect a site base in decimal units, the architect enlarges it by a factor of 12 for architectural units, and then gives that site base to the landscape architect in architectural units. The landscape architect now has to coordinate with the civil, but they are using different units. All this interaction requires careful attention to the drawing's units.





You often need to set the units manually when you first receive a site plan from someone else. Use AutoCAD Distance Command (Tools/Inquiry/Distance) to measure an object with a known length, such as a door or a parking stall. Then determine the distance in the AutoCAD Command line, paying careful attention to the units. Some combinations of results in the AutoCAD Command line for measuring a door could include:

• Distance = 36.0: This plan is set for Decimal units (we know this because no units follow the number). However, 36.0 corresponds to a 36” door, and one unit should represent 1 inch. The units are formatted incorrectly, and you would set the units (Format/Units) from Decimal to either Engineering or Architectural (Imperial Units).

• Distance = 3.0: This plan is set for Decimal units (again, we know this because no units after the number), and 3.0 would correspond to a 36” door in Decimal units where one unit represents 1 foot. The units on this plan are correctly set to Decimal Units.

• Distance = 3”: This plan is set for Imperial units but should be set for Decimal, so one unit will represent 1 foot. The units are formatted incorrectly, and you would set the units (Format/Units) from Imperial to Decimal.

• Distance = 3'-0”: This plan is set for Imperial units and is correct.

Assigning a Real-World Scale to a Placed Hatch Pattern

You might want a hatch that shows pavers, wood planks, or other objects to appear at a scale where the hatch components show at the same measurements in your drawing as they would on the site itself. For example, you might have a hatch depicting 8-inch pavers, and you want the pavers to actually measure 8 inches in your drawing. If so, here's what to do.

Imperial-Metric Scale Conversion

Looking for a way to convert a site plan from Imperial to metric and wondering what standard metric scale you should use in the new viewport, or vice versa? Trying to save in a detail into your Imperial detail library that was originally metric? See our Metric and Imperial conversion cheat lists.
