  1. Documentation
  2. Admin Overview
  3. Drawing & Sheet Setup Tools
  4. Cleaning Files with the Nuke Tool

https://www.landfx.com///www.landfx.com/media/k2/items/cache/188698d74f669da43f3b0cc597e80fc0_Generic.jpg

F/X Scale by Reference

Quick video

Power Tip: Scale Reference
x

Power Tip: Scale Reference

  • F/X Scale by Reference Overview
  • Scaling by Reference in Native CAD: A Process Simplified

Our F/X Scale by Reference feature provides a quick and easy way to scale an object or image by selecting a known distance on that object or image and then telling CAD your desired measurement of that distance. F/X Scale by Reference simplifies the Reference option within the native CAD Scale tool by turning it into a separate tool, complete with a simple dialog box.

F/X Scale by Reference Overview

In this example, we'll use F/X Scale by Reference to scale the site image below.



Site image to scale

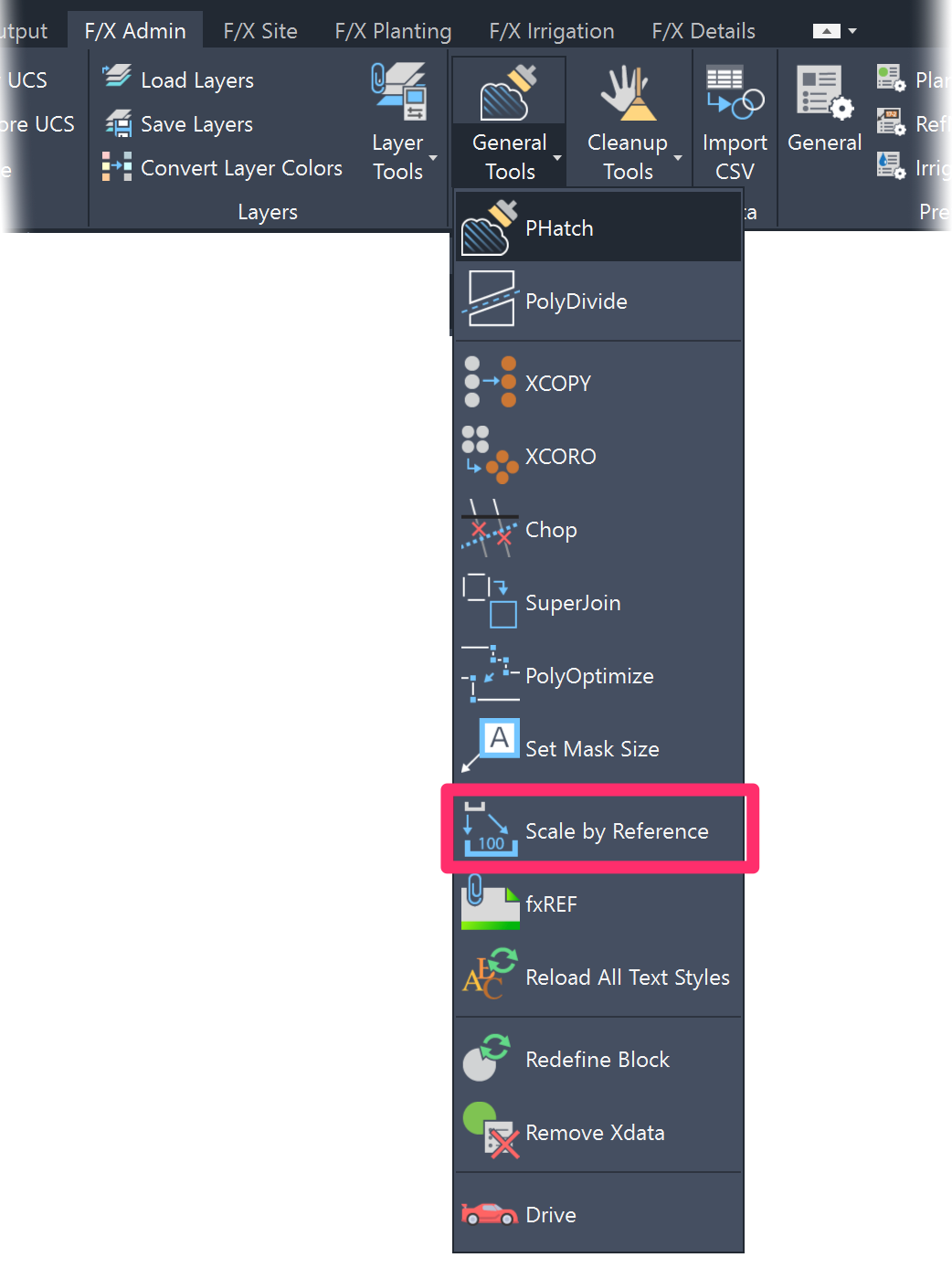

F/X Admin ribbon, Scale by Reference flyout



F/X Admin ribbon, Scale by Reference flyout

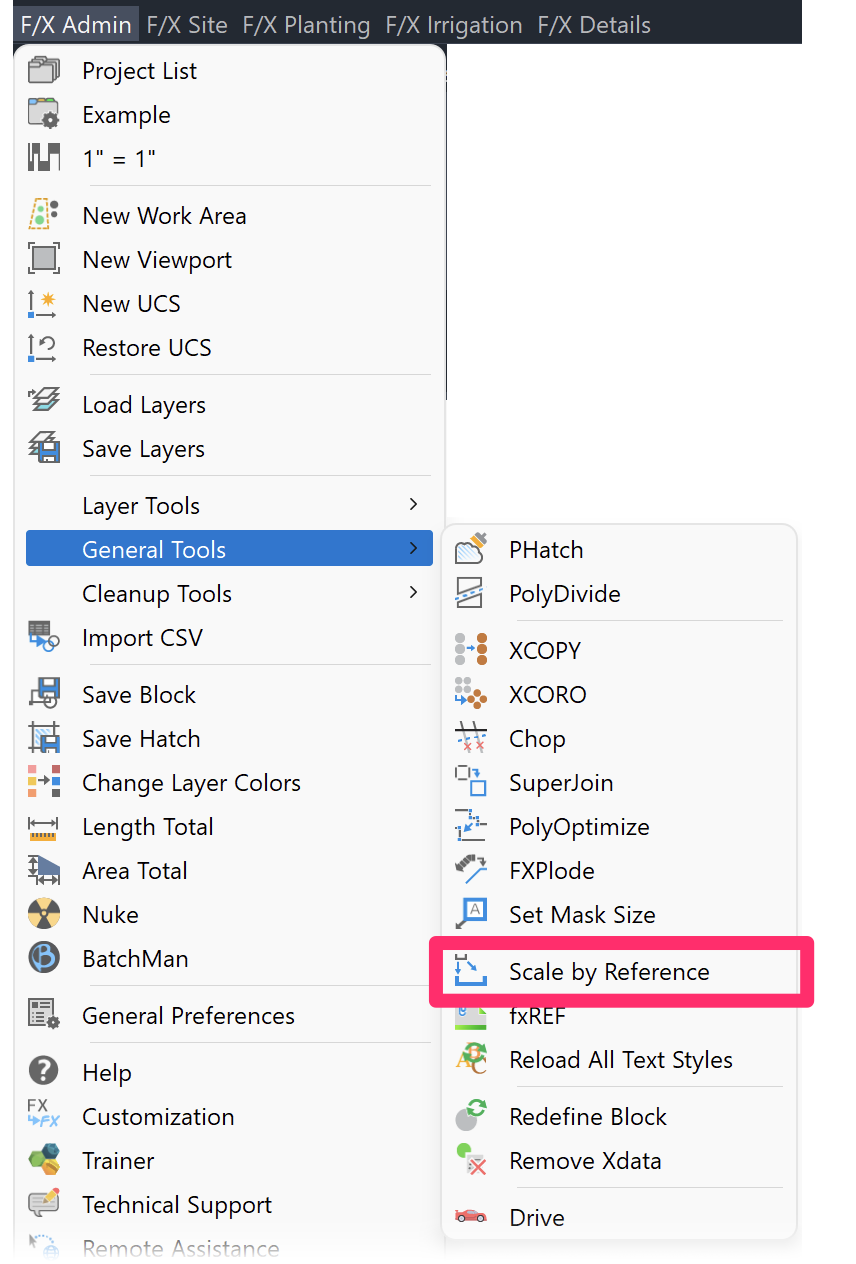

F/X Admin menu



F/X Admin menu, Scale by Reference option







or type FX_SCALEREFERENCE in the Command line

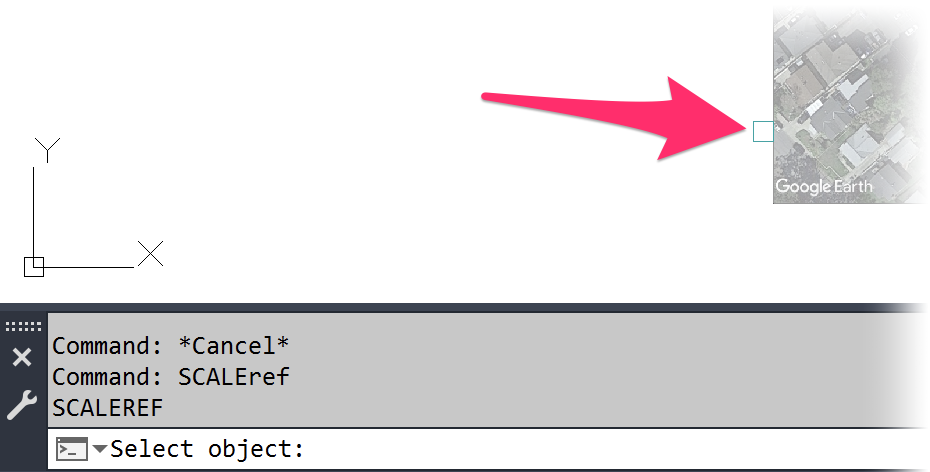

You'll be prompted to Select Object.



The cursor will turn into a pickbox. Click the object you want to scale.

Select object to scale







You'll be prompted to Select first point. Click one end of the known distance on the object. In this example, we'll select the left end of a length dimension.



Select first point of known distance

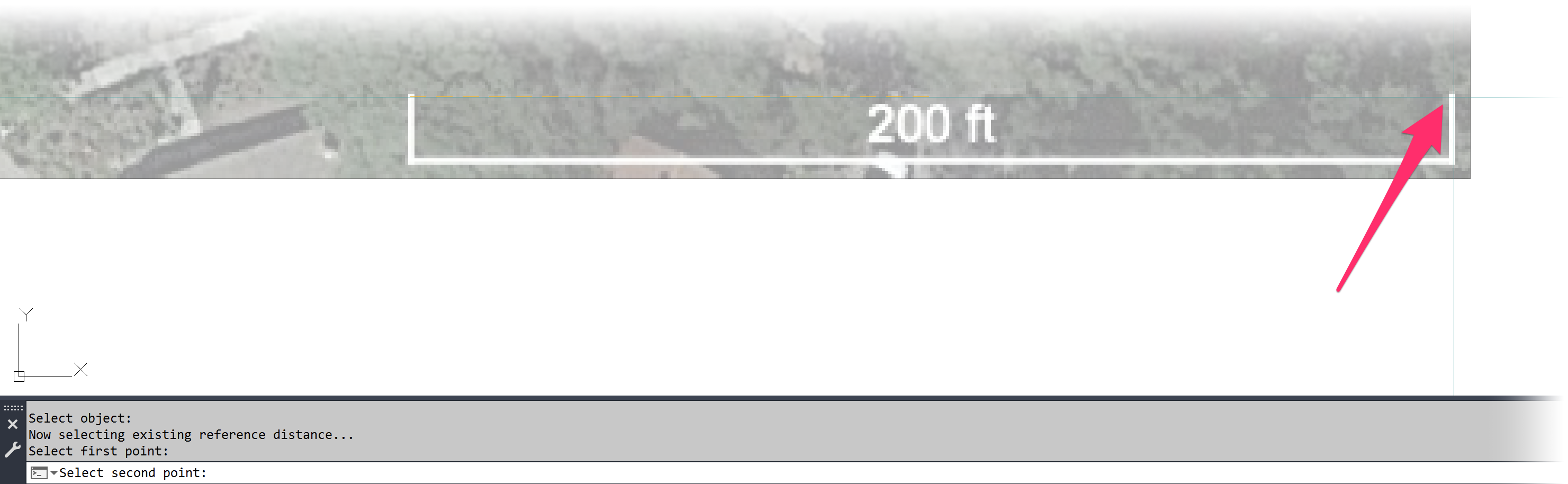

You'll then be prompted to Select second point. Click the other end of the known distance on the object. In this example, we'll select the right end of the same length dimension.



Select second point of known distance







Scale by Reference dialog box

The Scale by Reference dialog box will open.



The Reference length entry will show the actual current length of the known distance you selected.



Type your desired length for that distance in the New length text field. In this example, we want the length dimension to actually measure 200 feet, so we'll type 200.



Click OK when finished.







After you click OK, the object will be scaled based on the distance you entered.



Your drawing will zoom in to the scaled object, and you'll see a message confirming the object was scaled.



You can verify that the object has been scaled correctly by checking any known distance on that object.

Object has been scaled

Scaling by Reference in Native CAD: A Process Simplified

Quick video

Power Tip: Scale by Reference
x

Power Tip: Scale by Reference

As mentioned above, our F/X Scale by Reference tool simplifies the Reference option within the native CAD Scale tool.



For information on the native process this tool simplifies, see the Autodesk documentation on scaling by reference, as well as our Scale by Reference Power Tip, linked to the right.
