Our FXPLODE tool provides a quick way to turn a Concept Line into its source polyline.

A Concept Line is a graphical object placed using our Concept Graphics Manager that represents a linear usage or defines an area to be screened or bounded. Use this tool to change a Concept Line back into the polyline that was originally selected to create it in order to edit its shape or path. More information about Concept Lines

FXPLODE Overview

Open the FXPLODE tool:

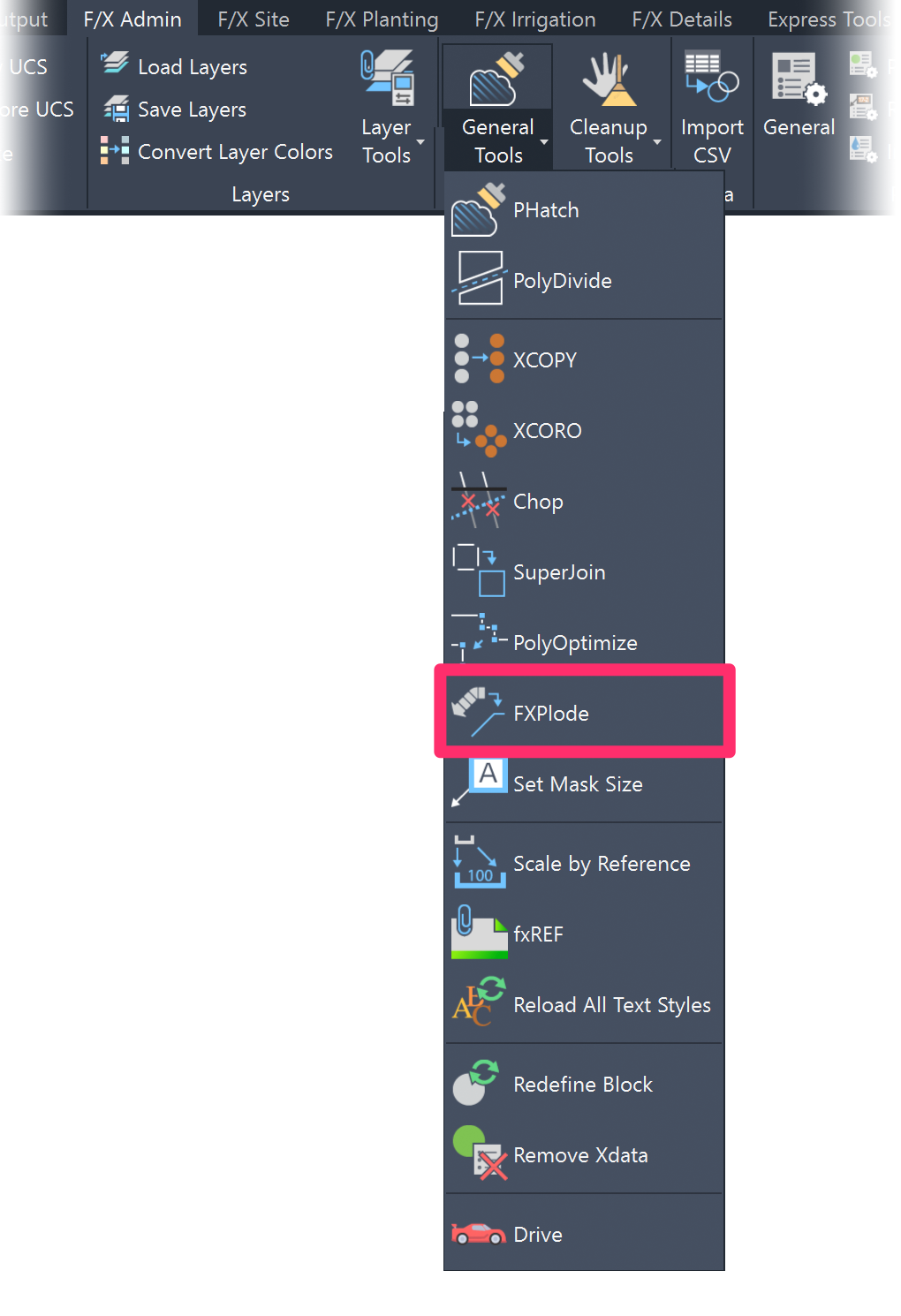

F/X Admin ribbon, FXPLODE flyout


F/X Admin ribbon, FXPLODE flyout

F/X Admin menu


F/X Admin menu, FXPLODE option




or type FXPLODE in the Command line




The cursor will turn into a pickbox.


Select the Concept Line you want to change into a polyline.

Select Concept Line to explode




Concept Line changed back into a polyline

The Concept Line will change back into a regular polyline.
