Placing Details on a Sheet

Once you've added details to your project, you can start placing them in a sheet in your drawing.




Note that details need to be placed on a Paper Space layout sheet – not in Model Space.

Open Your Land F/X Project

When you're ready to start placing details, make sure you have the correct Land F/X project open. See our instructions for opening an existing project.


Check the Detail Manager to ensure that you've added all the details you plan to use in that project. See our steps for adding details to a project.

Setting Up Your Detail Sheets

Setting Up Your Paper Space Layout Sheets

You should already have a template set up for each size layout sheet you plan to use in your drawings, as well as a drawing template (DWT file) and title block template.


If you haven't set up your drawing, layout, and title block templates yet, please follow our instructions to:


Each of your detail sheets needs to be assigned to a Paper Space layout tab. You can set up the detail sheet(s) for your project using our Sheet Index, or you can create sheets on the fly when placing details.



Placing a Detail Sheet Template

A detail Sheet Template grid is a convenient way to quickly divide the sheet area defined in your layout tab with a grid that conforms to your detail template size. You can use this feature to create a grid that will allow you to line up your details in an orderly, organized fashion.



This feature may not be necessary with your own sheet title block, as yours may already have a built-in grid layout for your detail template. You may often find yourself working with a title block other than your own – perhaps from a another consultant or from a client. In these cases, you may need to insert this sheet grid to help you organize your details.



Access the Sheet Template tool:



F/X Details ribbon, Sheet Templte flyout


F/X Details ribbon, Sheet Template flyout




Details toolbar


Details toolbar

F/X Details menu


F/X Details menu, Insert Sheet Template option



Detail Templates toolbar


Detail Templates toolbar



or type DetailSheetTemplate in the Command line




The CAD Command line will prompt: Upper left window



Click the upper left corner of the area where you want the grid to start. The grid will automatically snap to the end of a line or an intersection, which may be a border line of the sheet.



You can also draw a rectangle on a non-plot layer that marks the boundary of the area where you want to place your Sheet Template. The Sheet Template tool will snap to the corner of that rectangle.

Placing the Sheet Template grid



Once you select the upper left corner, the CAD Command line will prompt: Lower right corner



Grid appears

As you move your mouse down and to the right, a grid will appear, spanning between where you started and the current location of your crosshairs.The grid will also snap to the lower right corner of the sheet, or of a rectangle you've drawn.



The lines of this grid will be equal to or larger than your basic Detail Template size – never smaller.

The Sheet Template grid will be drawn as a block on a non-plot layer. If you want, you can erase the grid and re-draw it (if you got it wrong the first time), or turn off the layer if you don’t want it visible.

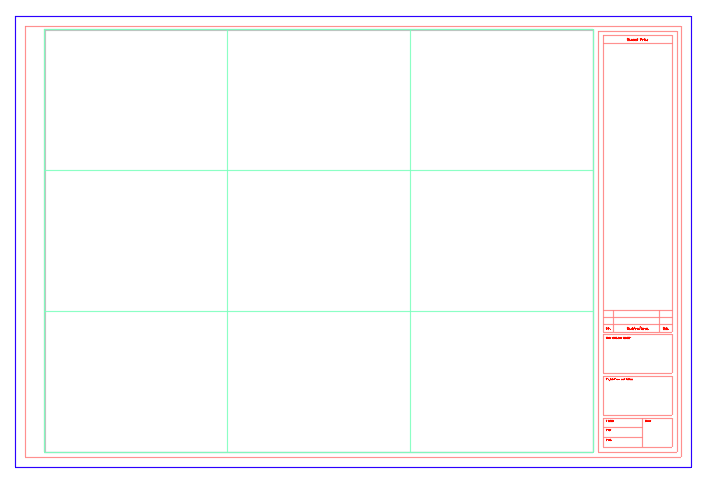

You now have a perfectly spaced and sized grid where you can place your details.

Placing Details

Our Detail Manager is your central location for adding details to your projects, placing them in your drawing sheets, and more. For detailed information on the Detail Manager, see our Detail Manager documentation.


Once you're ready to place your details, open the Detail Manager:


F/X Details ribbon, Detail Manager flyout


F/X Details ribbon, Detail Manager flyout




F/X Details menu


F/X Details menu, Detail Manager option



Details toolbar


Details toolbar

Detail Manager toolbar


Detail Manager toolbar








or type FX_DetailManager in the Command line




In the Detail Manager, highlight a detail you want to place.




Click Place to place the detail.

You can also double-click a detail, and it will place on the sheet. If you try to place a detail by double-clicking it while you're in Model Space, you'll be automatically prompted to place a detail callout in Model Space. Note that this option is not available with the Place button.

Detail Manager, Place button




When you place a detail in a drawing associated with one of your Land F/X projects for the first time, the Select Current Sheet dialog box will open. Here, you can select the sheet where you want to begin placing details by either:




Selecting an existing sheet you've already created using our Sheet Index tool, or ...

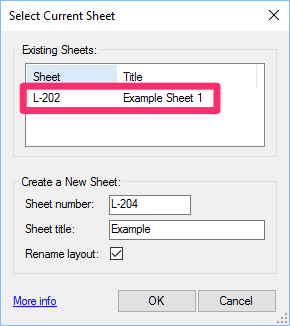

Selecting an existing sheet

... creating a new sheet on the fly. If you choose to create a new sheet, enter a Sheet Number and Sheet Title.

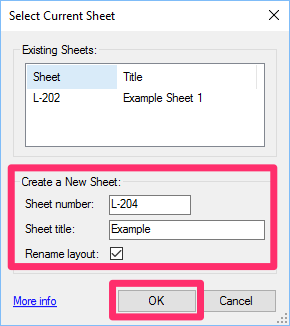

Creating a new sheet on the fly



Renaming a Layout Sheet


Option to rename the Paper Space layout sheet assigned to your detail sheet

When placing a detail, you also have the option to rename the Paper Space layout sheet assigned to your detail sheet.



Before placing your detail, select the Rename layout option to rename the layout sheet based on the Sheet number entry you're currently assigning to the detail.



Current layout sheet number example



Click OK to continue placing the detail.



The Detail number dialog box will open. The system automatically defaults to the next available detail number (in this example, 1). You can keep the default number or enter another number you want to assign to the detail.


Click OK to place the detail.

Detail Number dialog box, OK button

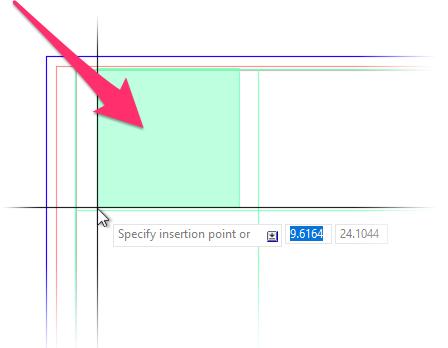

Click to place detail within square in grid



You'll be prompted to Specify insertion point. You'll also see a colored square or rectangle that serves as a guide for the size of the detail you're placing.



Click to place the detail within a square in the grid.




The detail will be placed in the grid square where you clicked.

Detail placed



You can continue placing details into new squares of the grid on your sheet. If you run out of room, just create a new sheet and continue placing details there.


Example of sheet with placed details
