Associating Details With Plants



You can associate a detail with a plant in your drawing using the Plant Manager.



Accessing the Plant Manager

Open the Plant Manager :



F/X Planting ribbon, Planting flyout



F/X Planting ribbon, Planting flyout







Plant Manager toolbar



Plant Manager toolbar





Planting toolbar



Planting toolbar

F/X Planting menu



F/X Planting menu, Plant Manager option







or type ProjectPlants in the Command line

Associating a Detail With the Selected Plant

In the Plant Manager, select the plant you want to associate with a detail (example: Acer argutum).





Click Detail.

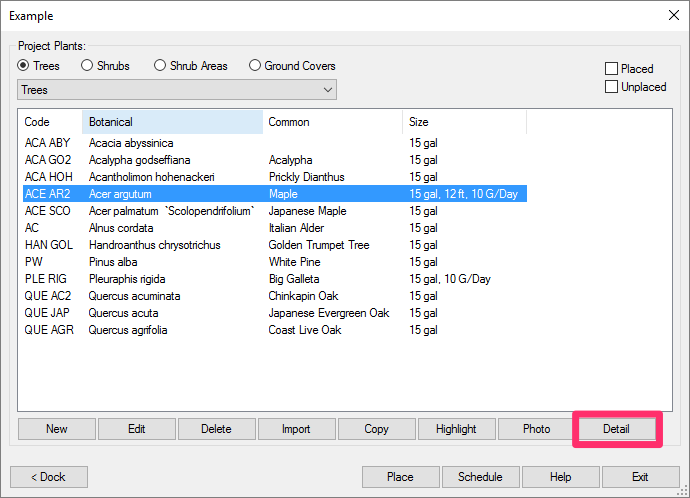

Plant Manager, Detail button







The Select Detail dialog box will open.

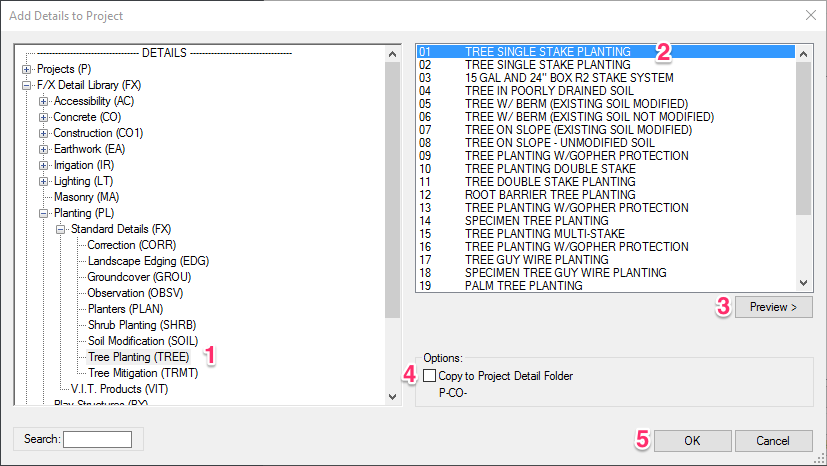

Select Detail dialog box, overview



1. Expand the detail category you'd like to associate with the plan by clicking the plus (+) sign next to it. Then select a subcategory.



2. A list of details in the selected subcategory will appear in this pane. Select a detail from the list.



3. Click Preview to see a preview of the detail.



4. Check this box to copy the detail to your project detail folder.



5. Click OK to associate the detail with the selected plant.

Last modified on Wednesday, 06 April 2022 11:20
