Chances are, you're familiar with our Color Render tool. Although we originally developed this tool to colorize plant symbols and hatches for presentations, we've engineered it to also add color to Reference Note (RefNote) hatches. When you colorize your hatches, they'll retain their hatch patterns and all associated data.





Aside from plant symbols and hatches, this feature will only work with hatches placed as Area/Volume Reference Notes – no generic site hatches.

How to Assign a Color to an Area/Volume RefNote Hatch

Hatch without color

In this example, we'll add a color layer to this RefNote hatch. You can assign a color to an Area/Volume RefNote while:







Assigning a Color to a RefNote While Adding or Editing That RefNote

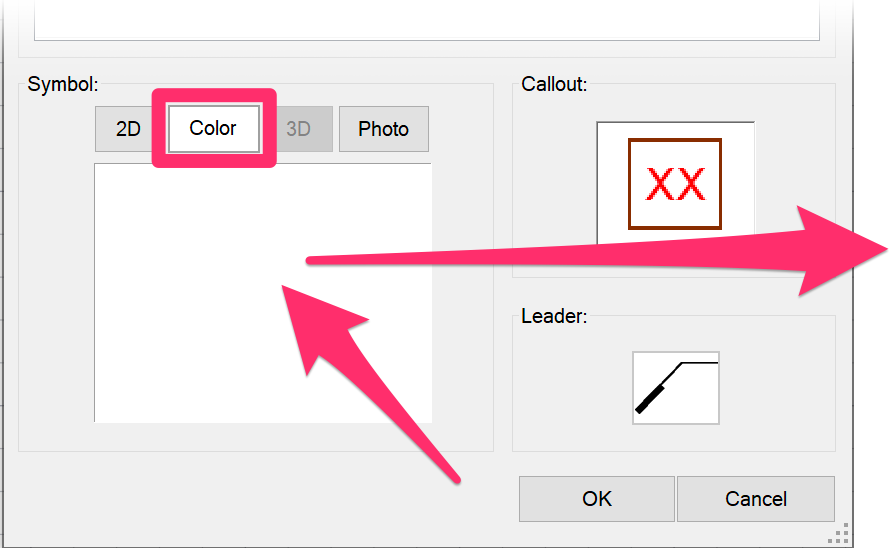

We've added the ability to assign a color to an Area/Volume RefNote when adding or editing that RefNote. Just select the Color tab in the Symbol area when adding or editing the RefNote, then choose a color. More information and instructions



Editing a Reference Note, Symbol thumbnail
Color selection dialog box







Assigning a Color to a RefNote While Using Our Color Render Tool

Open our Color Render tool:

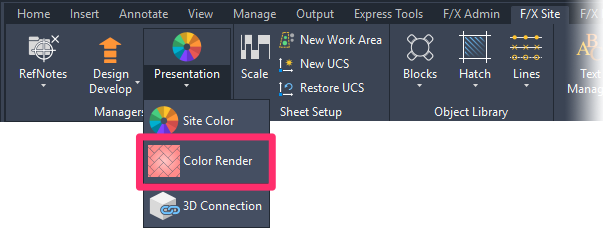

F/X Site ribbon, Color Render flyout



F/X Site ribbon, Color Render flyout





PLant Render toolbar



Plant Render toolbar



  Planting toolbar



Planting toolbar

F/X Planting menu



F/X Planting pull-down menu









typing PlantColor in the Command line



You'll only be able to colorize RefNote hatches you've already placed in your drawing.



The Plant Colorization dialog box will open (see image below).



Selecting a Color

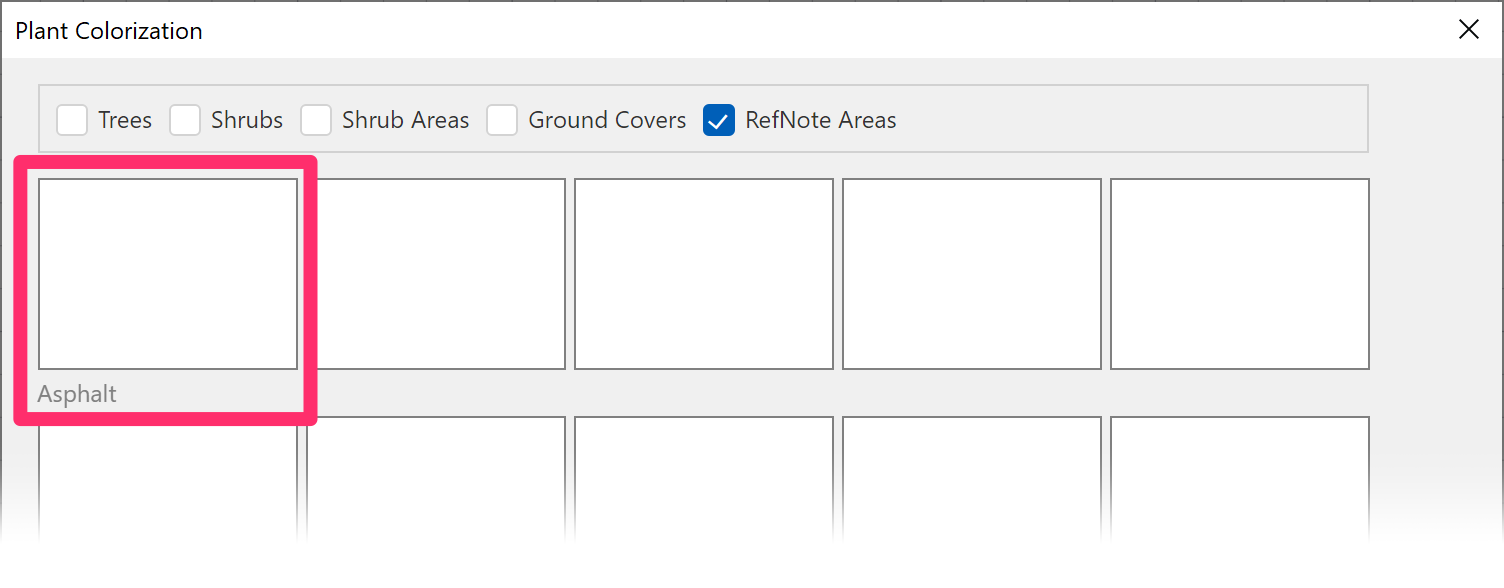

If you've placed a RefNote hatch in your drawing, you'll see a blank entry for that hatch in the Plant Colorization dialog box. Click that blank entry to assign the hatch with a color.





In our example, we've given the name Asphalt to the RefNote hatch we want to colorize.

Hatch to colorize

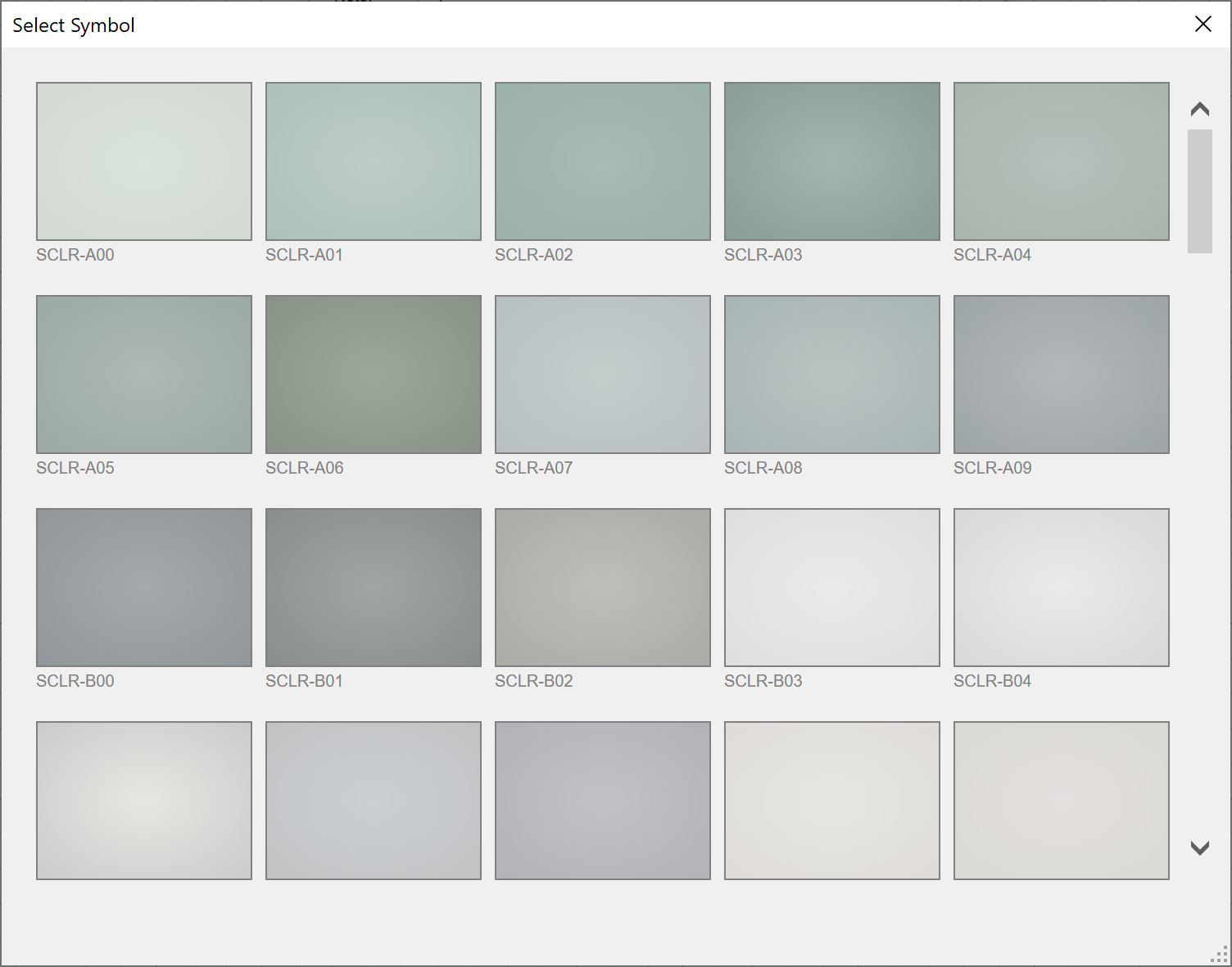

Assigning a color in the Select Symbol dialog box

The Select Symbol dialog box will open.







Click a color to assign that color to your RefNote hatch.







The color will be assigned to the RefNote in the Plant Colorization dialog box.





Click OK to close the dialog box.

Color assigned to RefNote

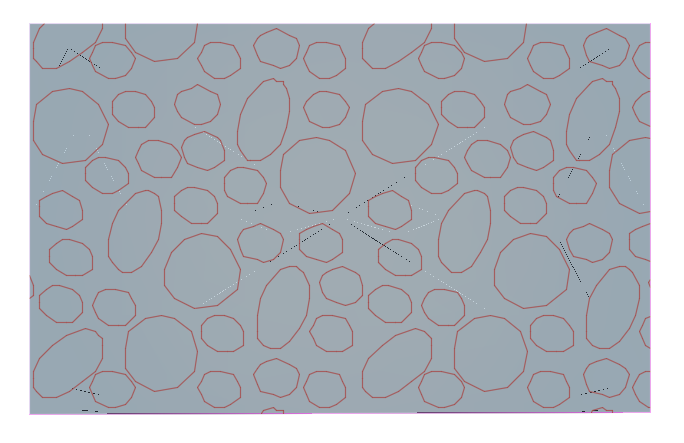

Color applied to RefNote hatch in drawing

The color you selected will be applied to all instances of the RefNote hatch in the drawing.

Turn Hatch Colors Off

If you need to turn your RefNote hatch colors off, open the Color Render tool again and click Off.



All RefNote hatch colors in your drawing will be turned off.

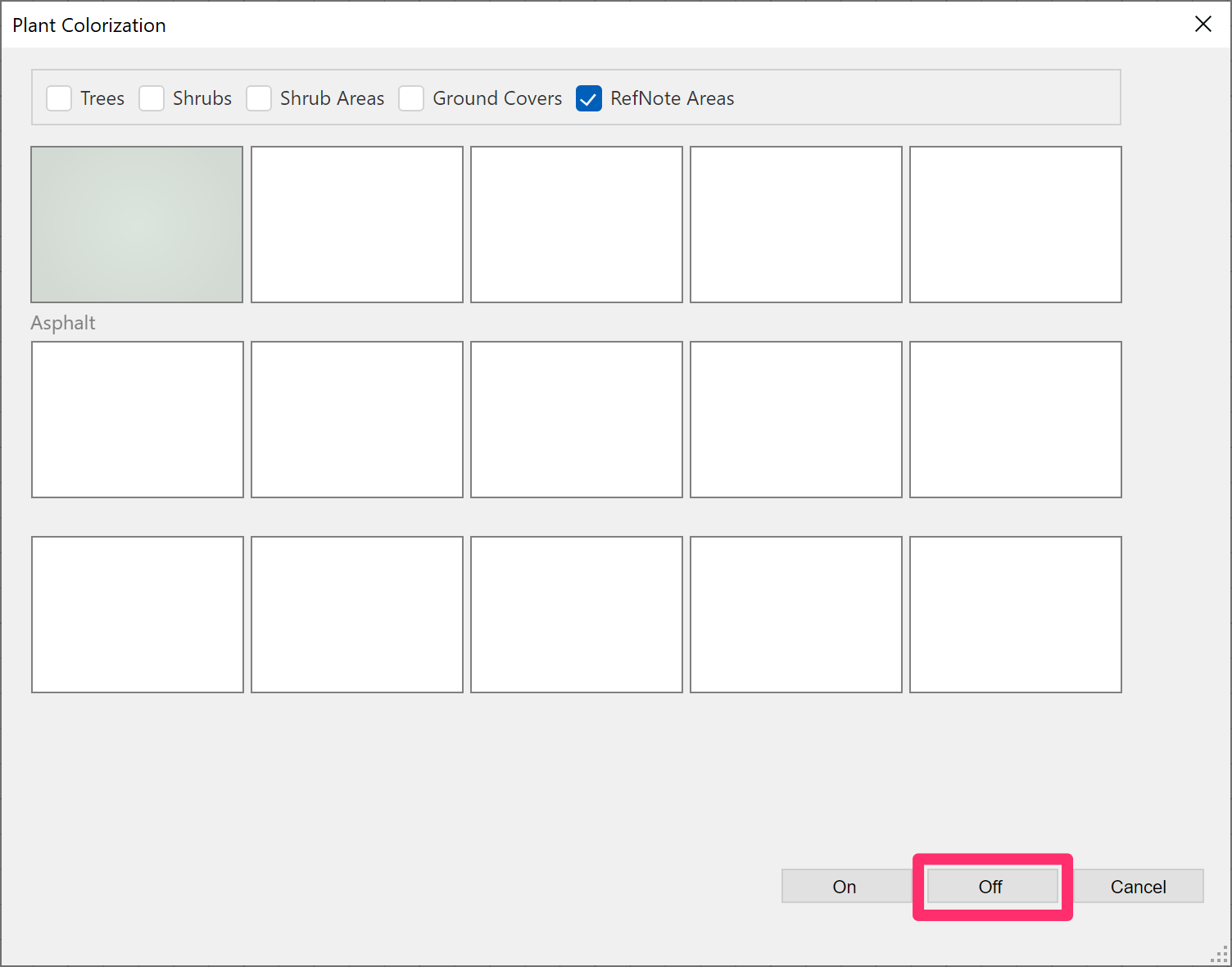

Color Render dialog box, Off button

Customizing the Color Wheel for RefNote Areas

You can now edit the color wheel assigned to RefNote areas within our Site Color tool, which will update the Color Books Color Render relies on.



For more information and instructions, see our documentation on Editing a color on an existing wheel, taking care to make your customizations to the RefNote Areas wheel.

Site Color dialog box showing RefNote Areas color wheel

Related Webinars

  • True Color in CAD: The color wheels available within our Site Color tool are now tied to color books, allowing you to customize palettes for RefNotes, site development, land use regions, and other color areas. Take a full-color tour of the updated features. (52 min)
  • Intro to Site Tools: Get some "from-the-basics" looks at some of our presentation graphics tools, such as Plant Color Render, Site Color, and SketchUp Connection. Along the way, we'll also give you some more advanced tips for developing a great presentation. (58 min)

Troubleshooting

Issue: You are unable to edit or call out a RefNote hatch that you've colorized



Issue: Colors are displaying incorrectly in Model Space



Issue: You created custom color using our Site Color tool, but those colors are not showing up in the hatch selection dialog box for Color Render



Having issues with the Color Render tool? See our Color Render Troubleshooting section.
