Updated Blocks and Block Folder Structure (2019)

Updated Blocks and Block Folder Structure (2019)

We've made an extensive update to our Plan Graphics and Elevation Graphics block libraries, adding numerous blocks and changing the existing subfolder structures. This updated structure will provide an improved framework for the ever-expanding wealth of content we plan to continue providing in the future. Plus our team has put some serious effort into creating these blocks, and they're really cool!



Read on to learn how to get these updated blocks, as well as how to set up your block folder structure correctly for future block downloads.

For details on our reorganized block subfolder structures, see the Updated Block Folder Structures section below.

How to Get the Blocks and Set Up Your Folders

To download the updated blocks and ensure that your block folder structure is set up correctly, you'll just need to follow a few simple steps.

If you've customized our default blocks or added your own, don't worry. These steps will also show you how to retain those custom blocks.

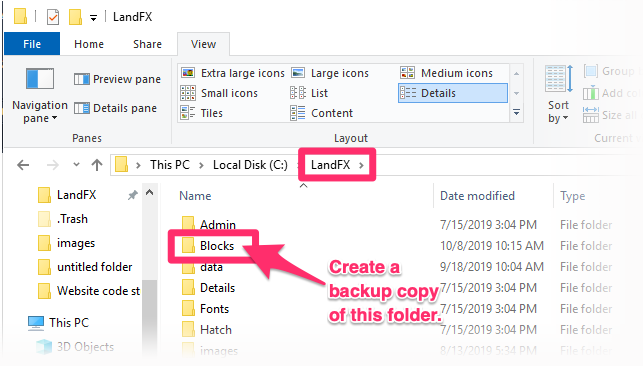

1. Make a backup copy of the folder LandFX/Blocks.



Back this folder up to a safe location you can access easily. If you have custom blocks, you'll need to access this backup at the end of these steps.

Back up LandFX/Blocks folder







Delete Elevation Graphics and Plan Graphics folders

2. Make absolute certain that you've backed up the folder LandFX/Blocks correctly.



Now delete the subfolders folders elevation_graphics and plan_graphics from the folder LandFX/Blocks.



Your LandFX folder will be on your computer if you have a Single-User installation. It will be on a server or in a shared online location if you have a Multi-User installation.







Important: You're not finished yet. The blocks and their subfolders won't download until you complete Step 3.



3. Place a block from each category from our Plan Graphics and Elevation Graphics libraries.

Don't see the new folders after deleting your old plan and elevation graphics folders? The blocks and subfolders will download on demand, and your folder structure will be created automatically as you place blocks from each category.

Do you have custom blocks?

If you or your firm has customized any of our default blocks in these folders, or added your own blocks, move on to the next step.



If you haven't customized any of our default Plan Graphics or Elevation Graphics blocks or added your own, you've done what you need to do and can start using the updated blocks.







4. (only necessary if you've customized our default blocks or added your own) After the correct folder structure has downloaded, open your backed-up Blocks folder and copy each of your custom blocks into the appropriate subfolder in your LandFX/Blocks folder.



For example, copy all your custom site furnishing Plan Graphics into the folder LandFX/Blocks/plan_graphics/05-site_furnishings.



All your blocks should now be in one newly organized folder and ready to use.

The Updated Block Folder Structures

You'll notice that each subfolder within our various block folders is named with a number followed by the name of that type of blocks. We've added a block subfolder for each new block category we've created, and removed a few existing subfolders. We've also updated some of the identifying numbers for the existing folder names – again, to provide a better structure for future block downloads.

If you had custom blocks you made for any of the missing folder locations, you should be able to take a quick look at the new section and find where the correct location would be. If you haven't made changes to any of the blocks, you don't have to worry about it!







Plan Graphics

Here's the block category selection you'd see in our Plan Graphics dialog boxprior to the update, and what you see now. (Plan Graphics are our blocks in plan view.)

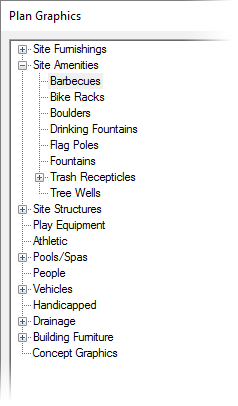

Old Plan Graphics categories



Old Plan Graphics categories, as seen in CAD



Updated Plan Graphics categories



Updated Plan Graphics categories, as seen in CAD







Here's what our old subfolder structure looked like for Plan Graphics, and what it looks like now.



Old Plan Graphics subfolder structure



Plan Graphics, old subfolder structure



Updated Plan Graphics folder structure



Plan Graphics, updated subfolder structure







Note that we've updated the identifying number for several subfolders (05_site_furnishings and 10-site_structures, for example, among others).



We've removed several subfolders: 12-play_equipment, 27-handicapped, and 33-building_furniture.



Finally, we've added a couple of subfolders: 35-accessibility and 65-architectural.







Numbered guide to the Plan Graphics categories as seen in CAD*:

*You won't see the number assigned to each subcategory when browsing Plan Graphics in CAD – e.g., (200) Ramps. We're just providing the numbers here for your reference so you can cross-reference each category with its corresponding block folder.





Updated Accessibility category, Plan Graphics



Accessibility

Updated Architectural category, Plan Graphics



Architectural

Updated Athletic category, Plan Graphics



Athletic



Updated Drainage category, Plan Graphics



Drainage



Updated People category, Plan Graphics



People













Updated Pools/Spas category, Plan Graphics



Pools/Spas

Updated Site Amenities category, Plan Graphics



Site Amenities





Updated Site Furnishings category, Plan Graphics



Site Furnishings



Updated Site Structures category, Plan Graphics



Site Structures

Updated Vehicles category, Plan Graphics



Vehicles

Elevation Graphics

Here's the block category selection you'd see in our Elevation Graphics dialog box prior to the update, and what you see now. (Elevation Graphics are our blocks in elevation, or side, view.)



Old Elevation Graphics categories, seen in CAD



Old Elevation Graphics categories, as seen in CAD

Updated Elevation Graphics categories,



Updated Elevation Graphics categories, as seen in CAD







Here's what our old subfolder structure looked like for Elevation Graphics, and what it looks like now.



Old Elevation Graphics folder structure



Elevation Graphics, old subfolder structure

Updated Elevation Graphics folder structure



Elevation Graphics, updated subfolder structure







We've also changed identifying numbers, removed folders, and added folders in a similar (but not identical) way to how we've updated our Plan Graphics library.







Numbered guide to the Elevation Graphics categories as seen in CAD*:

*You won't see the number assigned to each subcategory when browsing Elevation Graphics in CAD – e.g., (200) Ramps. We're just providing them here for your reference so you can cross-reference each category with its corresponding block folder.





Updated Accessibility category, Elevation Graphics



Accessibility



Updated Animals category, Elevation Graphics



Animals

Updated Architectural category, Elevation Graphics



Architectural



Updated Athletic category, Elevation Graphics



Athletic



Updated Lighting category, Elevation Graphics



Lighting













Updated People category, Elevation Graphics



People

Updated Planting category, Elevation Graphics



Planting







Updated Pools/Spas category, Elevation Graphics



Pools/Spas

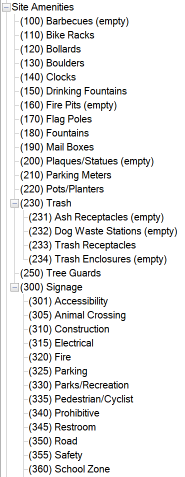

Updated Site Amenities category, Elevation Graphics



Site Amenities



More Updated Site Amenities



More Site Amenities







Updated Site Furnishings category, Elevation Graphics



Site Furnishings

Updated Site Structures category, Elevation Graphics



Site Structures

Updated Vehicles category, Elevation Graphics



Vehicles

Land F/X Generic Block Naming Conventions

Our updated blocks have the following name structure: LAFX-XXXX-VV-YYY-ZZZD. For example:

  • LAFX-FURN-PV-101-006
  • LAFX-FURN-ER-101-006
  • LAFX-FURN-EF-101-006







Here is the logic behind our block-naming conventions:



Name Component:

XXXX

VV

YYY

ZZZ

D

Meaning:

Block Category

View Designator

Block Subcategory

Block Number

Dynamic Block

Brief Definition:

The broadest classification of the block.

The orientation of the block.

Specific classification of the block.

Unique identifying number for the block.

This character is only added to blocks that are dynamic.

Analogy:

Think of a state/province.

N/A.

Think of a city.

Think of a specific street address.

Think of apartment or suite number (only applies to dynamic blocks).







Here's how our block categories are named, in reference to the block type denoted by each category:



Category:

FURN

AMEN

STRC

ATHL

POOL

PEOP

ANML

LITE

VEHC

PLNT

ACCS

DRAN

ARCH

Block Type:

Site Furnishings

Site Amenities

Site Structures

Athletic

Pools/Spas

People

Animals

Lighting

Vehicles

Planting

Accesibility

Drainage

Architectural







Here are our block view designators for non-planting blocks:



Designator:

PV

ER

EF

EB

Block View:

Plan View

Elevation View, right

Elevation View, front

Elevation View, back





Here's an example of the available views of one of our furniture blocks:





Furniture block, front view, example



Block name: LAFX-FURN-EF-101-006.png

(front view)

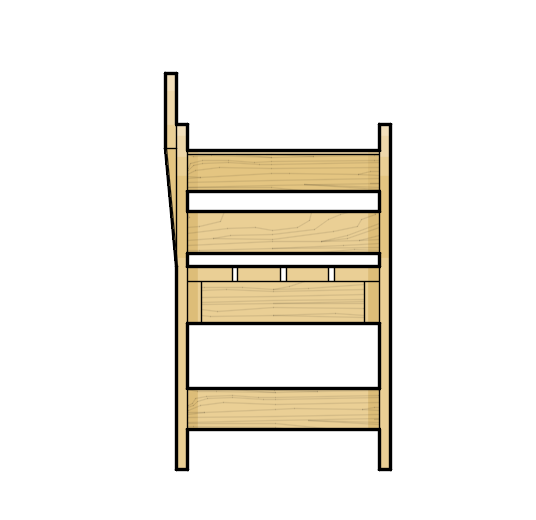

Furniture block, right view, example



Block name: LAFX-FURN-ER-101-006.png

(right view)





Furniture block, plan view, example



Block name: LAFX-FURN-PV-101-006.png

(plan view)

Note that the EB (elevation back) view is missing in this particular case. Keep in mind that that we don't have every view of every block.





And here are our block view designators for planting blocks:



Designator:

DE

FL

BR

SN

Block View:

Default elevation

Flowering

Bare

With snow

Dynamic Blocks

We've also added a designator to the thumbnail slide of each of our dynamic blocks.



If you see this symbol in the top right corner of a block's thumbnail slide when you go to place that block, you'll know it's dynamic.



Dynamic block symbol





Here are some examples:





Dynamic block example 1



Dynamic block example 2
