Site Dimensions

Our Site Dimension tools that allow for quick and accurate dimensioning of lines, angles, circles, and a number of other objects in your drawings.



Linear Dimension, example

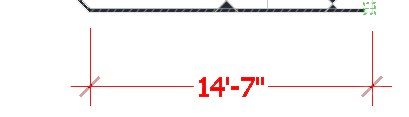

Example of a Linear Dimension placed in a drawing

Looking for a way to place dimensions in your details? See our Detail Dimensions documentation.

The appearance of your Site Dimensions will vary depending on the Dimension Style (DimStyle) you have set. For more information, see our Dimension Styles (DimStyles) documentation.

See our dimensioning tools in action! Check out our Design F/X Overview webinar. The demonstration of our dimensionsing tools starts at 14:40 in the video.

Site Dimension Overview

The Site Dimension tools are available as:

F/X Site ribbon, Dimension flyouts



Flyouts of the Dimension button on the F/X Site ribbon







A series of Command line commands:

  • Site_Dim_Aligned (Aligned Dimension)
  • Site_Dim_Linear (Linear Dimension)
  • Site_Dim_Angular (Angular Dimension)
  • Site_Dim_Arc (Arc Dimension)
  • Site_Dim_Radius (Radius Dimension)
  • Site_Dim_Diameters (Diameter Dimension)
  • Site_Dim_Center (Center Mark Dimension)
  • Site_Dim_Continue (Continue Dimension)
  • Site_Dim_Baseline (Baseline Dimension)
F/X Site menu

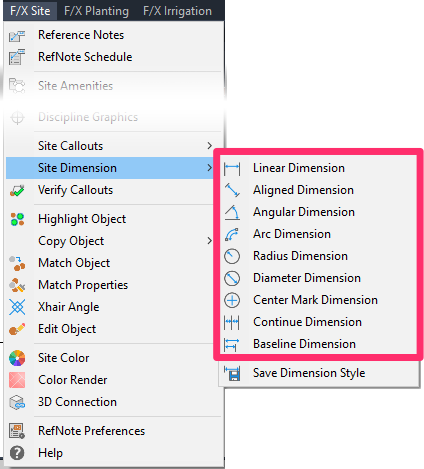

Flyouts of the Site Dimension option on the F/X Site menu









Site Dimension toolbar

Buttons on the Site Dimension toolbar

Pre-Setting a Dimension Style (DimStyle)

Our dimensioning tools will only pull the dimension style (DimStyle) that is saved into the Land F/X system, or our default DimStyle if you haven't saved one in. If you have your own existing dimension standards, you’ll need to save that DimStyle into your Land F/X Preferences.



You can simply set your custom DimStyle to current and save it into the Preferences, but this practice can often result in issues with scaling. Instead, we recommend quickly re-creating your DimStyle starting with our default DimStyle. It’s easier than you think. See our DimStyles documentation for instructions.







Change the Arrowhead Style for Radius, Diameter, or Angular Dimensions

You may want to use different arrowhead styles for different types of dimensions. For example, you may want to use ticks for your Linear Dimensions but arrows for Radius Dimensions. For instructions, see our DimStyle arrowhead style documentation.

Dimension Types

Our Site Dimension feature encompasses several dimensioning tools.





Aligned Dimension

The Aligned Dimension tool allows you to place a linear dimension at an angle that is neither horizontal nor vertical – although this tool also allows for horizontal and vertical dimensions.







Open the Aligned Dimension tool:



F/X Site ribbon, Aligned Dimension flyout



F/X Site ribbon, Site Aligned Dimension flyout







Site Dimension toolbar



Site Dimension toolbar

F/X Site menu



F/X Site menu, Aligned Dimension option







or type Site_Dim_Aligned in the Command line







This tool works in exactly the same way as the Linear Dimension tool, except it also allows you to either:

  • Click to place a dimension manually, or
  • Right-click to select an object to dimension



Placing Angular Dimension manually

Placing an angular dimension manually







Selecting an object to dimension



Selecting an object to dimension







Linear Dimension

Linear Dimensions measure the horizontal or vertical distance between two points, lines, or objects in your drawing.

If you need to dimension a line or object at an angle that is neither horizontal nor vertical, you'll want to use the Aligned Dimension tool.





Open the Linear Dimension tool:



F/X Site ribbon, Linear Dimension flyout



F/X Site ribbon, Site Linear Dimension flyout







Site Dimension toolbar



Site Dimension toolbar

S/X Site menu



F/X Site menu, Linear Dimension option







or type Site_Dim_Linear in the Command line













You'll be prompted to Specify first extension line origin or <select object>.



You can either click to set the first of the two dimension lines or right-click to select an object to dimension.



If you click to start placing a dimension, you'll then be prompted to Specify second line origin.





Click again to specify the other side of the dimension. You'll now see the dimension. You can then move the mouse horizontally or vertically and then click again to set the length of the dimension lines.



The example to the right shows a linear dimension measuring a vertical distance.

Linear Dimension example, vertical





If you right-click to select an object to dimension, the cursor will turn into a pickbox. You can then select the object you want to dimension, then move the mouse and click again to set the length of the dimension lines.





Linear Dimension example, horizontal

In this example, we've selected the horizontal side of a rectangle to dimension.







Angular Dimension

The Angular Dimension tool measures the degrees of an angle you select in your drawing.





Open the Angular Dimension tool:



F/X Site ribbon, Angular Dimension flyout



F/X Site ribbon, Site Angular Dimension flyout







Site Dimension toolbar



Site Dimension toolbar

F/X Site menu



F/X Site menu, Angular Dimension option







or type Site_Dim_Angular in the Command line







You'll be prompted to Select arc, circle, line, or <specify vertex>.





Select an object you want to dimension in degrees. You can also right-click to set your own angle vertex manually.





If dimensioning an angle between two lines, you'll then be prompted to Select second line. Click to set the second line of the angle.





Angular Dimension, example

In this example, we'll place a dimension for an angle of 61 degrees between two lines.

Are your Angular Dimensions showing something else in place of the degrees symbol, such as a fraction?



You may need to adjust your Dimension Text style.

Angular dimension showing fraction in place of degrees symbol





Arc Dimension

The Arc Dimension tool measures the length of an arc in your drawing.





Open the Arc Dimension tool:



F/X Site ribbon, Site Arc Dimension flyout



F/X Site ribbon, Site Arc Dimension flyout







Site Dimension toolbar



Site Dimension toolbar

F/X Site menu



F/X Site menu, Arc Dimension option







or type Site_Dim_Arc in the Command line







You'll be prompted to Select arc or polyline segment. Select the arc you want to dimension.





Here's an example of an Arc Dimension measuring the length of an arc:

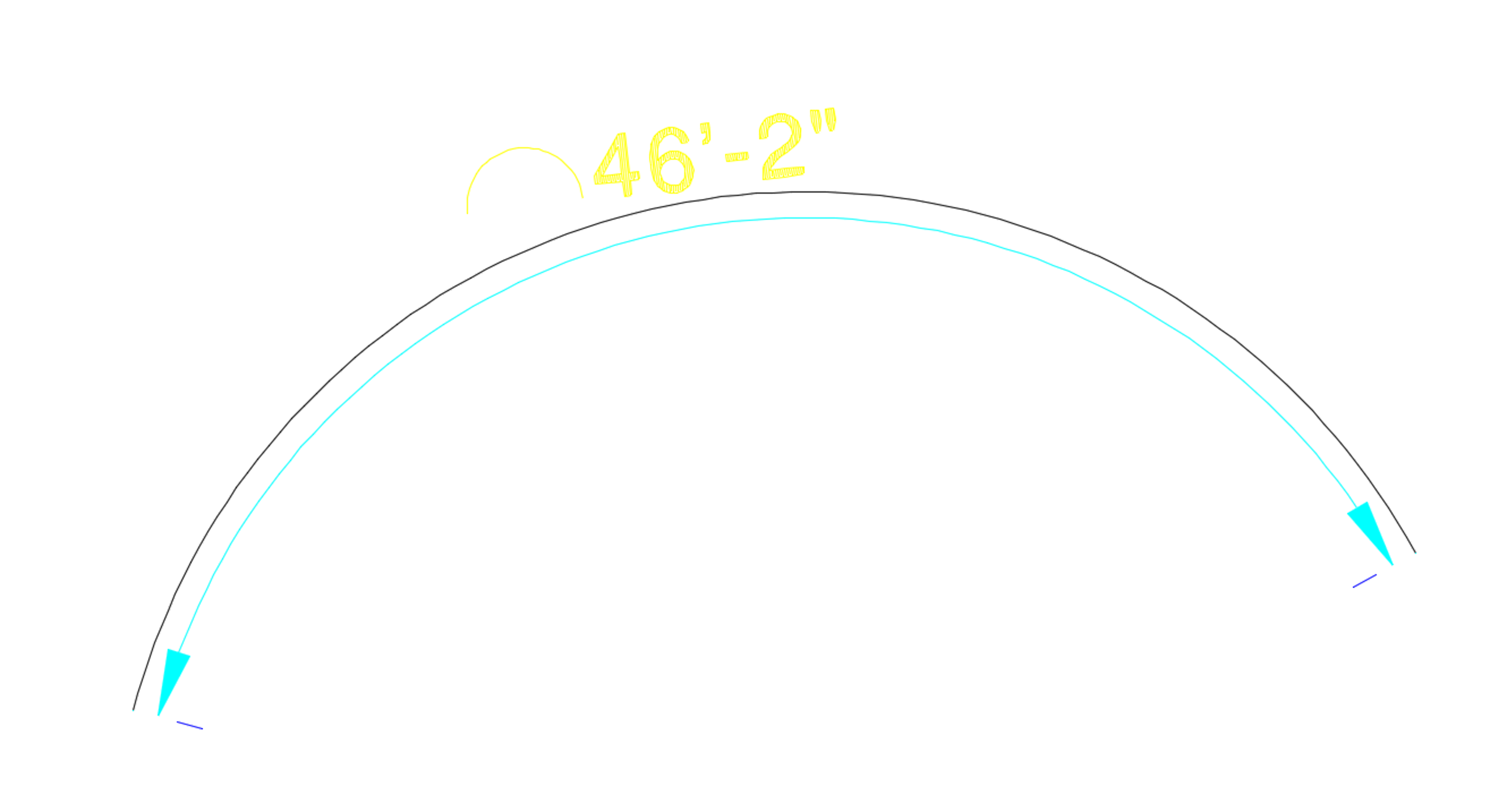

Arc Dimension, example







Radius Dimension

The Radius Dimension tool places a dimension of the radius of a circle or arc in your drawing.





Open the Radius Dimension tool:

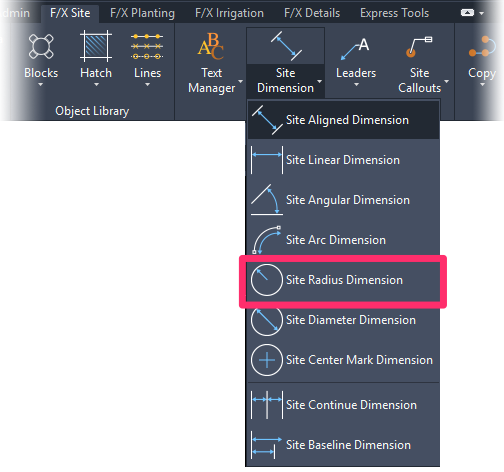

F/X Site ribbon, Radius Dimension flyout



F/X Site ribbon, Site Radius Dimension flyout







Site Dimension toolar



Site Dimension toolbar

F/X Site menu



F/X Site menu, Radius Dimension option







or type Site_Dim_Radius in the Command line







Here's an example of a Radius Dimension measuring the radius of a circle:

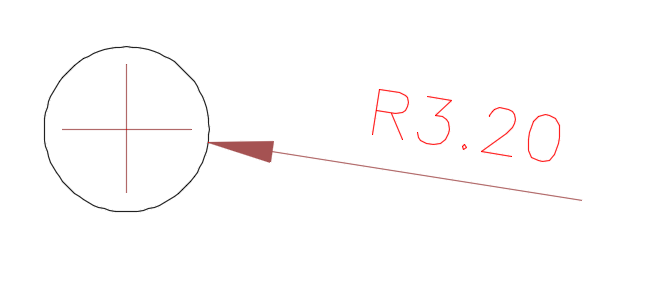

Radius Dimension, example







Center mark in Radius Dimension

If you want, you can include a center mark in your Radius Dimensions, as pictured to the left.

Find out how >







Diameter Dimension

The Diameter Dimension tool places a dimension of the diameter of a circle or arc in your drawing.





Open the Diameter Dimension tool:

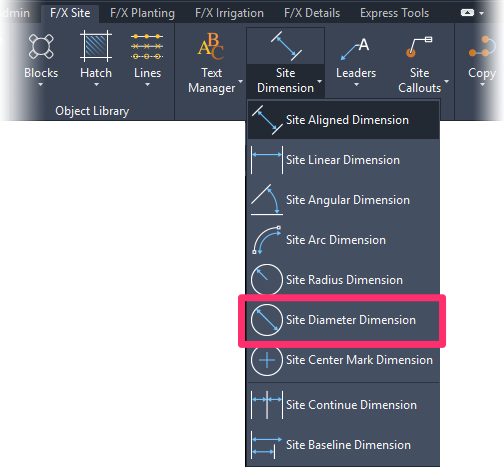

F/X Site ribbon, Diameter Dimension flyout



F/X Site ribbon, Site Diameter Dimension flyout







Site Dimension toolbar



Site Dimension toolbar

F/X Site menu

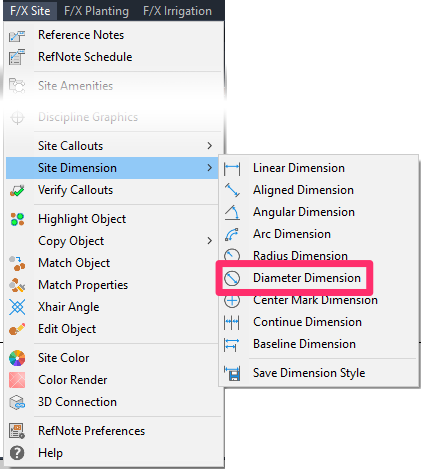

F/X Site menu, Diameter Dimension option







or type Site_Dim_Diameter in the Command line







Select a circle or arc, and click to place the diameter.

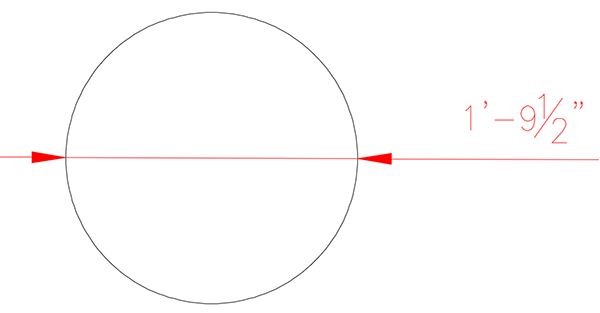

Placing a Diameter Dimension







Center Mark Dimension

The Center Mark Dimension tool places a center mark within a circle or arc in your drawing.



Open the Center Mark Dimension tool:



F/X Site ribbon, Center Mark Dimension flyout



F/X Site ribbon, Site Center Mark Dimension flyout







Site Dimension toolbar



Site Dimension toolbar

F/X Site menu

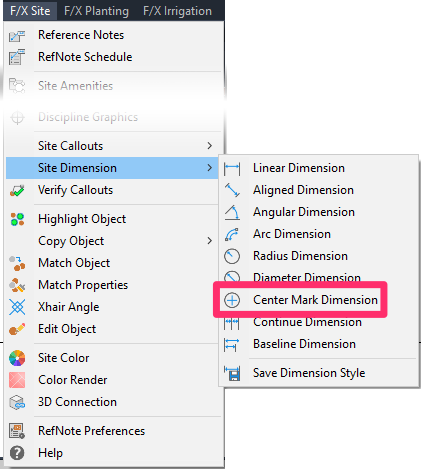

F/X Site menu, Center Mark Dimension option







or type Site_Dim_Center in the Command line







Select a circle or arc.



The center mark will be placed.

Placing a Center Mark Dimension







Continue Dimension

The Continue Dimension tool adds a dimension to the end of the last dimension placed (in other words, it continues that same dimension).





Open the Continue Dimension tool:

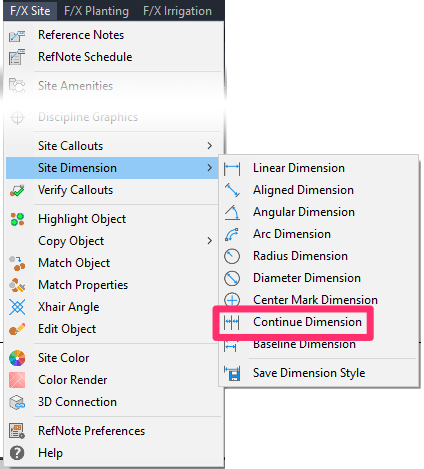

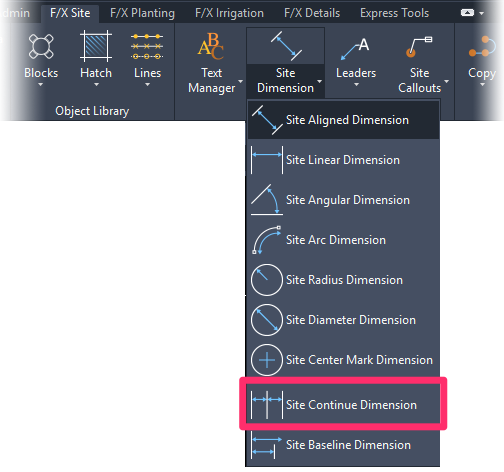

F/X Site ribbon, Site Continue Dimension flyout



F/X Site ribbon, Site Continue Dimension flyout







Site Dimension toolbar



Site Dimension toolbar

F/X Site menu



F/X Site menu, Continue Dimension option







or type Site_Dim_Continue in the Command line







In the example below, we'll use the Continue Dimension tool to add onto an existing Aligned Dimension of 10.57 feet.

 p;

Placing Continue Dimension



Baseline Dimension

The Baseline Dimension tool places a new dimension originating from the beginning (baseline) of the last dimension placed in your drawing.



Open the Baseline Dimension tool:

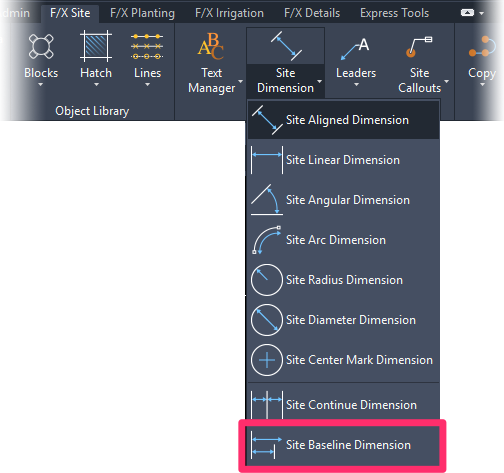

F/X Site ribbon, Baseline Dimension flyout



F/X Site ribbon, Site Baseline Dimension flyout











Site Dimension toolbar



Site Dimension toolbar















or type Site_Dim_Baseline in the Command line







Baseline Dimension will latch a dimension onto the baseline of the last dimension placed. Click to place the new dimension. You can continue clicking to place additional baseline dimensions, or press Esc to end the function.





In the example to the right, we'll add a Baseline Dimension of 25.07 feet to an existing a Linear Dimension of 9.82 feet.





We'll then add a second Baseline Dimension of 40.71 by clicking again.

Baseline Dimension, example

Dimensioning in Your Details

When placing tools in your details, make sure to use our Detail Dimensioning tools. Our Site Dimension tools are not designed to scale correctly within details.

Changing the Units Shown in Your Dimensions

In some cases, you might find yourself needing to place a dimension in Architectural Inches in a drawing where you're working in Decimal Feet, or vice versa. If this is the case, you can follow our instructions to:

Related Webinars

  • Working With Dimensions in Land F/X: We show you all the necessary steps for setting up Dimension Styles (DimStyles) and saving them into Land F/X. We also provide some general practice tips and go over some common troubleshooting items. (1 hr 5 min)

Dimensioning in Architectural Inches in a Decimal Feet Plan

Some firms' standards call for placing dimensions in Architectural Inches (e.g., 6'-6") in a plan where the units are set to Decimal Feet (e.g., 6.5'). Instructions >

Troubleshooting

Issue: When you place a site dimension, it comes in incorrectly. For example, it has a slash (/) instead of dimension text. The dimension itself may be coming in as an exploded series of objects rather than as a block.



Issue: Your dimensions are showing up in your drawing as incorrect measurements but are listed correctly in the Properties panel



Issue: You want your radius dimensions to include a center mark



Issue: Angular Dimensions do not include degrees symbols



Issue: Dimensions are being displaced, moving, or going off into space after you detach an Xref



Issue: Your dimensions are showing incorrect lengths even though your scale and units are set correctly



Issue: Your dimensions are not showing up in Paper Space



Issue: The text in your Site Dimensions is appearing scrunched, pushed together, or overlapping



Issue: Dimension is exploded when placed, and the number becomes a slash
