Convert Multiline Text to an MLeader (Mtext2MLeader)

Quick video

Power Tip: Text Tools to Capitalize On
x

Power Tip: Text Tools to Capitalize On

  • Mtext2MLeader Overview
  • Related Webinars

With our Mtext2MLeader tool, you can quickly change an entry of multiline text (MText) in your drawing to a Multileader (MLeader) callout.



An MLeader is a type of callout where the entire callout – leader, arrow, and text – is combined into a single and contiguous entity. MLeaders are extremely easy to move and edit. More information about MLeader callouts





Mtext2MLeader Overview

Open the Mtext2MLeader tool:



F/X Site ribbon, Mtext2MLeader flyout



F/X Site ribbon, Mtext2MLeader flyout

F/X Details ribbon, Mtext2MLeader flyout



F/X Details ribbon, Mtext2MLeader flyout

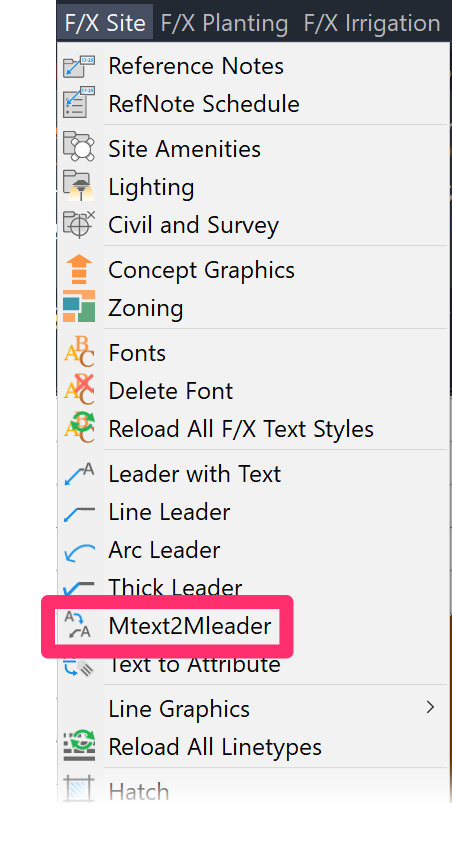

F/X Site menu



F/X Site menu, Mtext2MLeader option

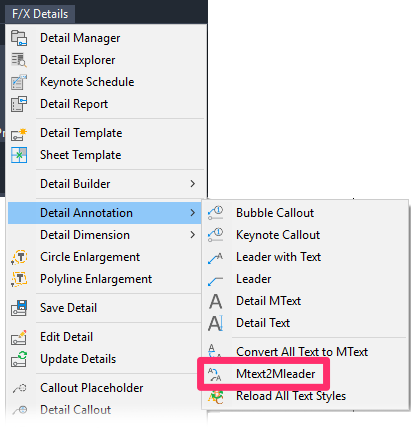

F/X Details menu



F/X Details menu, Mtext2MLeader flyout







or type MTEXT2MLEADER in the Command line

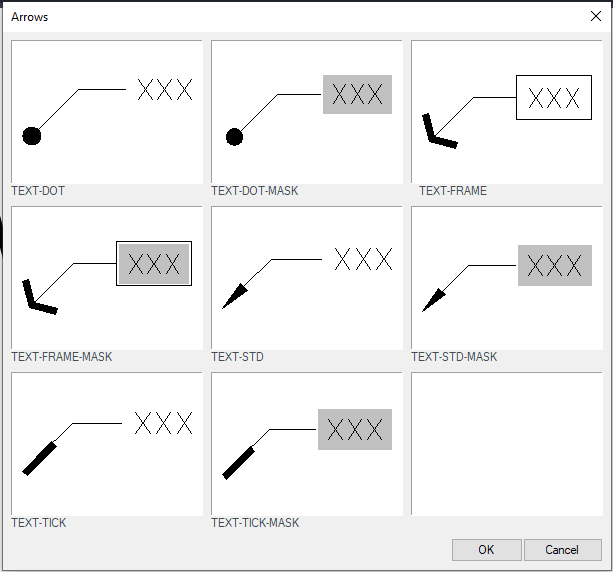

The first time you use the tool, you'll see a dialog box showing the available arrow styles for the MLeader callout you're about to create.



Select a style and click OK.

Arrow styles







Select MText entry to convert into callout

The cursor will turn into a pickbox.



Select the MText entry you want to convert into a callout.

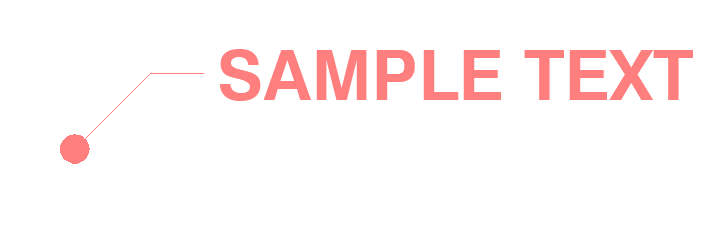

The MText will convert into an MLeader callout with the arrow style you selected. The text in the callout will take on our Callout Title text style, including all the settings you currently have configured for it.

MText converted into MLeader callout
