SketchUp: Projects Tool

The Projects tool allows you to access a list of your Land F/X projects created in SketchUp or CAD.









Before importing an Land F/X project from CAD into SketchUp, you'll need to export it from CAD. For more information, see Exporting a Land F/X Project from CAD below.

The units you set in your SketchUp model will also need to match the units you've set in the associated Land F/X project and CAD drawing. For information on matching your units between CAD and SketchUp, see our Setting the Units in SketchUp documentation.

Projects Tool Overview

Open the Land F/X Projects tool:





LandFX toolbar in SketchUp, Projects button



LandFX toolbar, Projects button

Land-FX menu in SketchUp, Projects option



Land-FX menu, Projects option







The Land F/X Projects dialog box will open.



1. List of all Land F/X projects you've created in SketchUp, or imported from CAD into SketchUp.



2. Create a New Land F/X project. More information



3. Open an existing Land F/X project. More information



4. Restore one of your Land F/X projects from a backup.



5. Create a Backup a Land F/X project.



6. Delete a Land F/X project.

Starting a New Land F/X Project

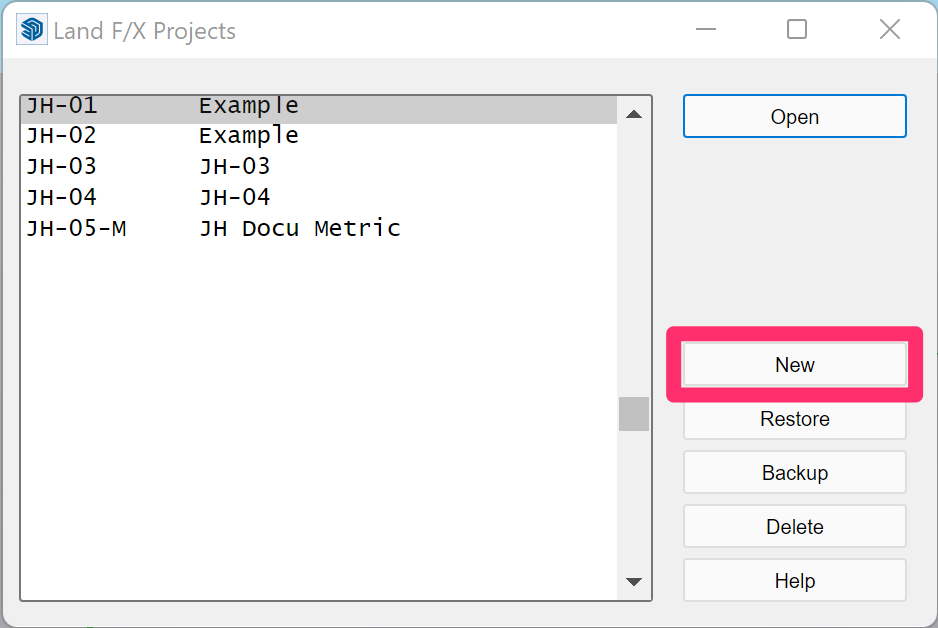

Click the New button in the Land F/X Projects dialog box.







New Project dialog box

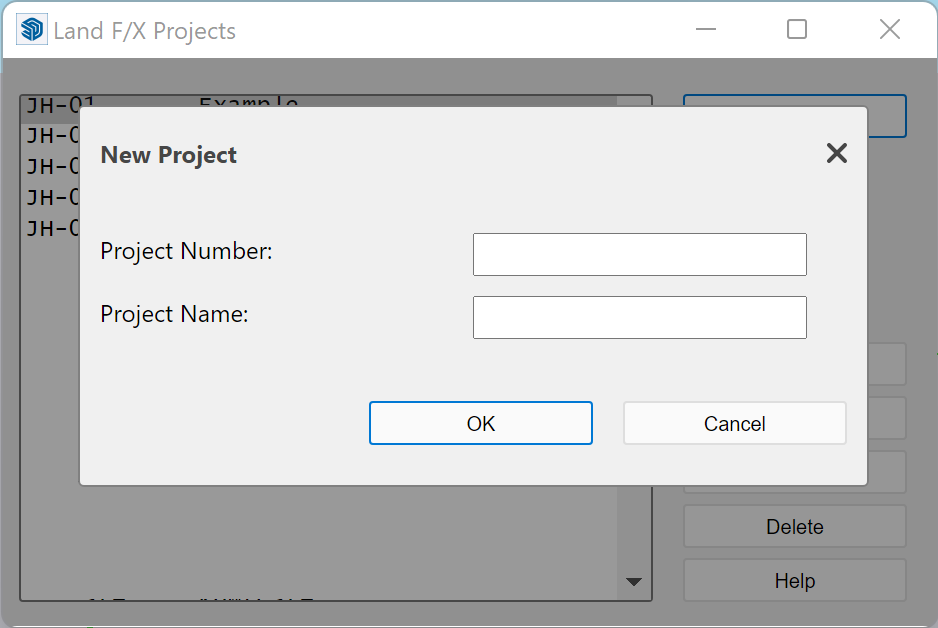

The New Project dialog box will open. Enter a unique Project Number and Project Name.

Your project number must be a unique number within your saved projects. This may apply to your entire firm, depending on where your firm's files are saved.



Click OK. You've now created a new Land F/X project and can begin designing in SketchUp using our plugin.

Exporting a Land F/X Project from CAD

Before importing the data from a design created in CAD with a Land F/X project into a SketchUp model, you'll need to export your design from CAD to SketchUp.



Open the CAD drawing associated with the project you want to export into SketchUp.



Example drawing to export from CAD to SketchUp



In our example, we'll export the data from this CAD drawing, along with the associated Land F/X project, into SketchUp. This will include not only the database containing plants and other items we have added to the project, but also the data reflecting the placement of those items in the drawing. Once we've exported these items from CAD, we can then import components from the drawing and the associated project into a SketchUp model.





Still in CAD, open our 3D Connection tool:





F/X Planting ribbon, 3D Connection flyout

F/X Planting ribbon, 3D Connection flyout













Planting toolbar

Planting toolbar

F/X Planting menu, 3D Connection option

F/X Planting menu, 3D Connection option









Plant Render toolbar

Plant Render toolbar







or type SketchUpExport in the Command line







The 3D Connection dialog box will open.

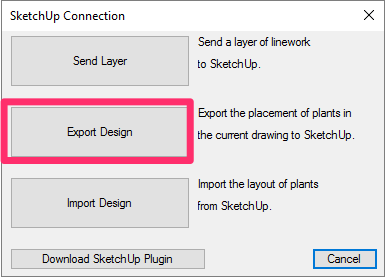

Click the Export Design button to export the plant data from this drawing and the associated Land F/X project into SketchUp.

3D Connection dialog box, Export Design button







You'll now see a message that your design has been exported into SketchUp.





Click OK to close this dialog box.







The plants and other items you've added to the Land F/X project associated with this drawing have been exported into SketchUp. The data reflecting the placement of the plants and other items has also been exported. You're now ready to import all this data into your SketchUp model.

Opening an Existing Land F/X Project in SketchUp

Access the Projects tool as described above.







The Land F/X Projects dialog box will open. Here, you'll see a list of all projects you've created in CAD or SketchUp.





To open an existing project, click the project name in the list to select it.

Land F/X Projects dialog box







Once you click the project name, the project will open and you can begin designing in SketchUp using our plugin.
