SketchUp: Place Shrub Tool

The Land F/X Place Shrub tool in SketchUp allows you to add shrubs to your project and place them in your design.











Land F/X Place Shrub Tool Overview

Note: Before adding or placing shrubs, you'll need to open a new or existing Land F/X project. You can create a new  project in SketchUp, or open an existing project, using our Projects Tool.

Access the Place Shrub tool from one of the following locations:















LandFX toolbar, Place Shrub button

Land-FX menu, Place Shrub option

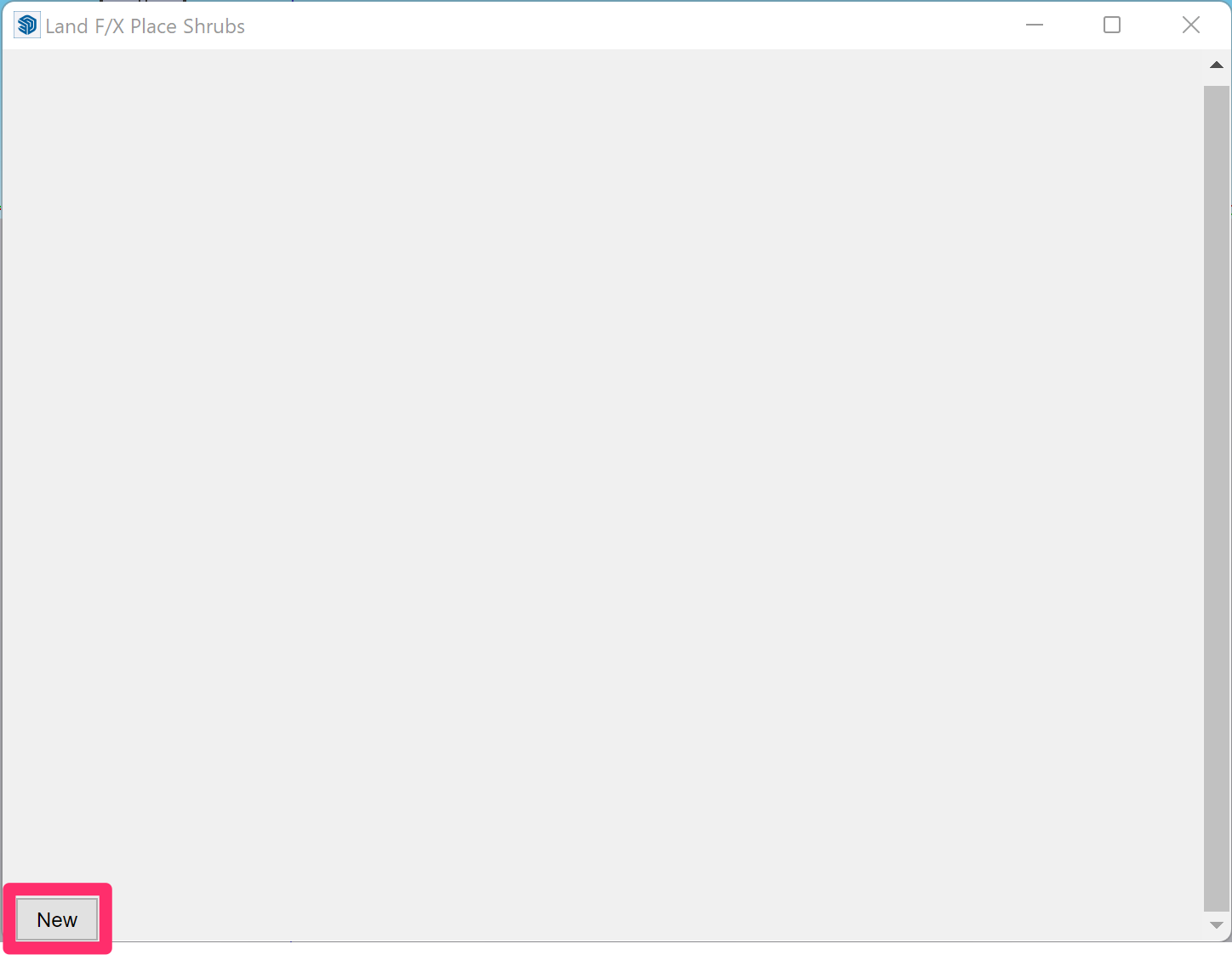

The Land F/X Place Shrubs dialog box will open.

Note: If you haven't yet placed a shrub, this dialog box will be blank when it first opens.

Adding New Shrubs to Your Project

To add a new shrub to your project, click New.










The Land F/X Add Plants dialog box will open.





Scroll to the Genus of the shrub you want to add, and click the genus to select it.





You'll now see a list of possible species in the Species column. Scroll to a species, and click it to add it.





Select a Variety in the same way.





Once you've selected your genus, species, and variety, click Add to Project.







The shrub you selected will now be listed in the Land F/X Place Shrubs dialog box.

Note: Shrubs will appear in alphabetical order, rather than in the order in which you selected them.







Repeat these steps for each additional shrub you want to add.

Note: Before you can place a plant in your design, you'll need to assigning it with a symbol using our Plant Info tool.

Placing Shrubs in Your Design

Once you've added a shrub to your project, you can place it in your design.



Access the Place Shrub tool as described above.



The Land F/X Place Shrubs dialog box will open.





To begin placing a specific type of shrub, click the shrub's symbol in the dialog box.





In our example, we'll place the shrub Aloe marlothii.








Drag the cursor into your design.





The symbol of the shrub you selected (example: Aloe marlothii) will appear wherever you drag the cursor.





Click to place the shrub. Keep clicking to continue placing additional shrubs.

You can also use SketchUp tools such as Move to manipulate existing shrubs in your design.

Troubleshooting

SketchUp: Basic troubleshooting (adding, placing, importing plants)



Issue: Objects are appearing in the incorrect locations or backward in your SketchUp model



Issue: You are unable to select a 3D symbol in SketchUp



Issue: The Land F/X SketchUp plugin freezes or becomes unresponsive



Issue: Clicking one of the Land F/X tool buttons in SketchUp does nothing
