File Location Keeps Plotting at Bottom of Page

Issue

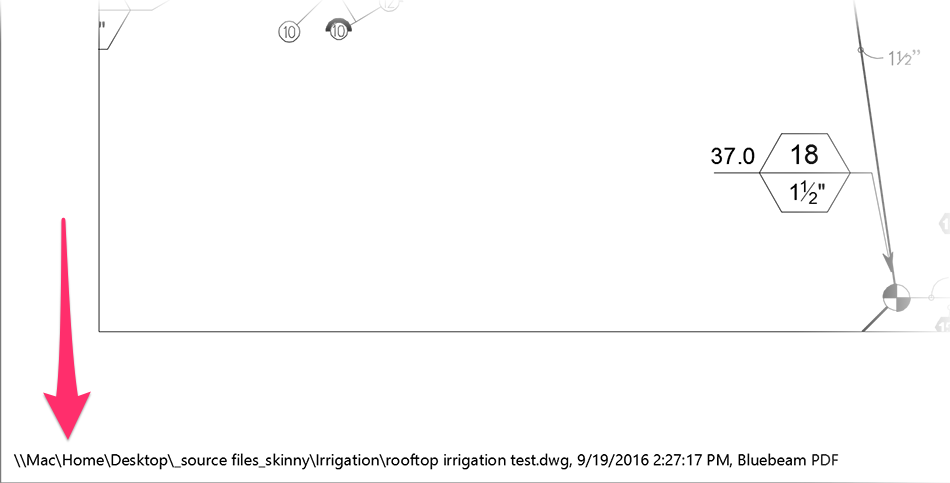

Your drawing's file location keeps plotting at the bottom of the page. The file location is not visible in Model Space or Paper Space – only on the plot preview and the plotted page.

Cause

You likely have the Plot Stamp On option enabled in your Plot settings.

Solution

1. Open the Layout tab you're trying to plot.

2. Type Plot in the Command line, and press Enter.

3. If you see the Plot stamp on option checked (see the image to the left), you've found the issue.

4. Uncheck the Plot stamp on option.





Then click Apply to Layout.

5. Plot the page again. The file location should not be visible.
