Unable to Snap to Geometric Center (Using Our POLYDIVIDE Tool)
Issue

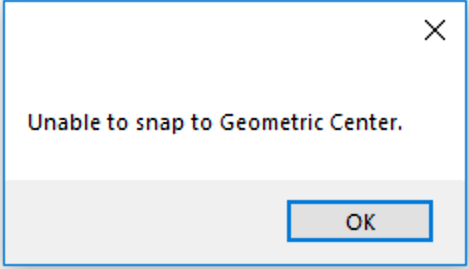

While trying to use our POLYDIVIDE tool to select and divide a closed polyline, you received the following error message:
Unable to snap to geometric center.
![Unable to snap to geometric center](/images/docs/kb/details-graphics/errors/5032/error.png)
Cause

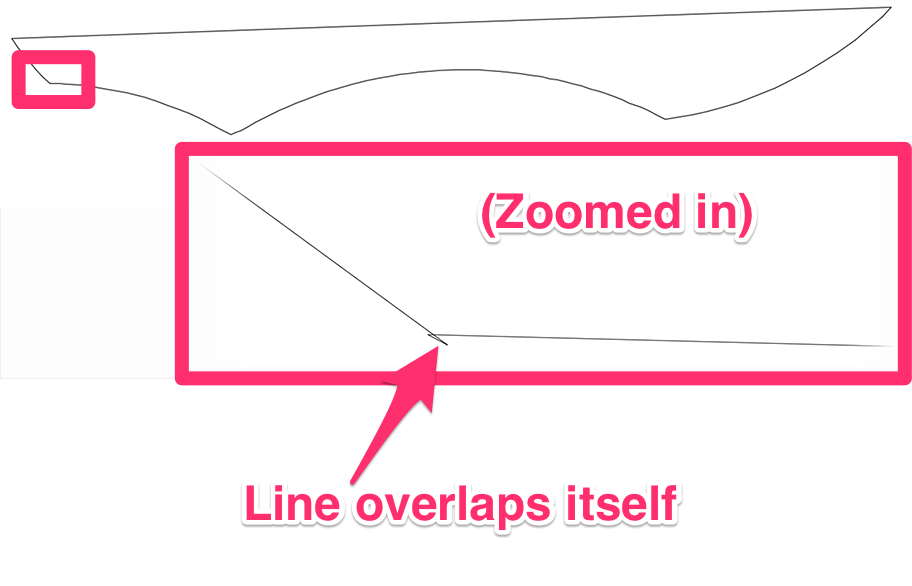

The polyline you selected includes an overlap, either from an extra vertex in a corner as pictured below, or because segments are jogging back and perfectly overlapping other segments.
![Polyline boundary overlapping itself](/images/docs/kb/details-graphics/errors/5032/overlap.png)
Solution
To resolve this issue, remove vertices as necessary to prevent the polyline from overlapping.

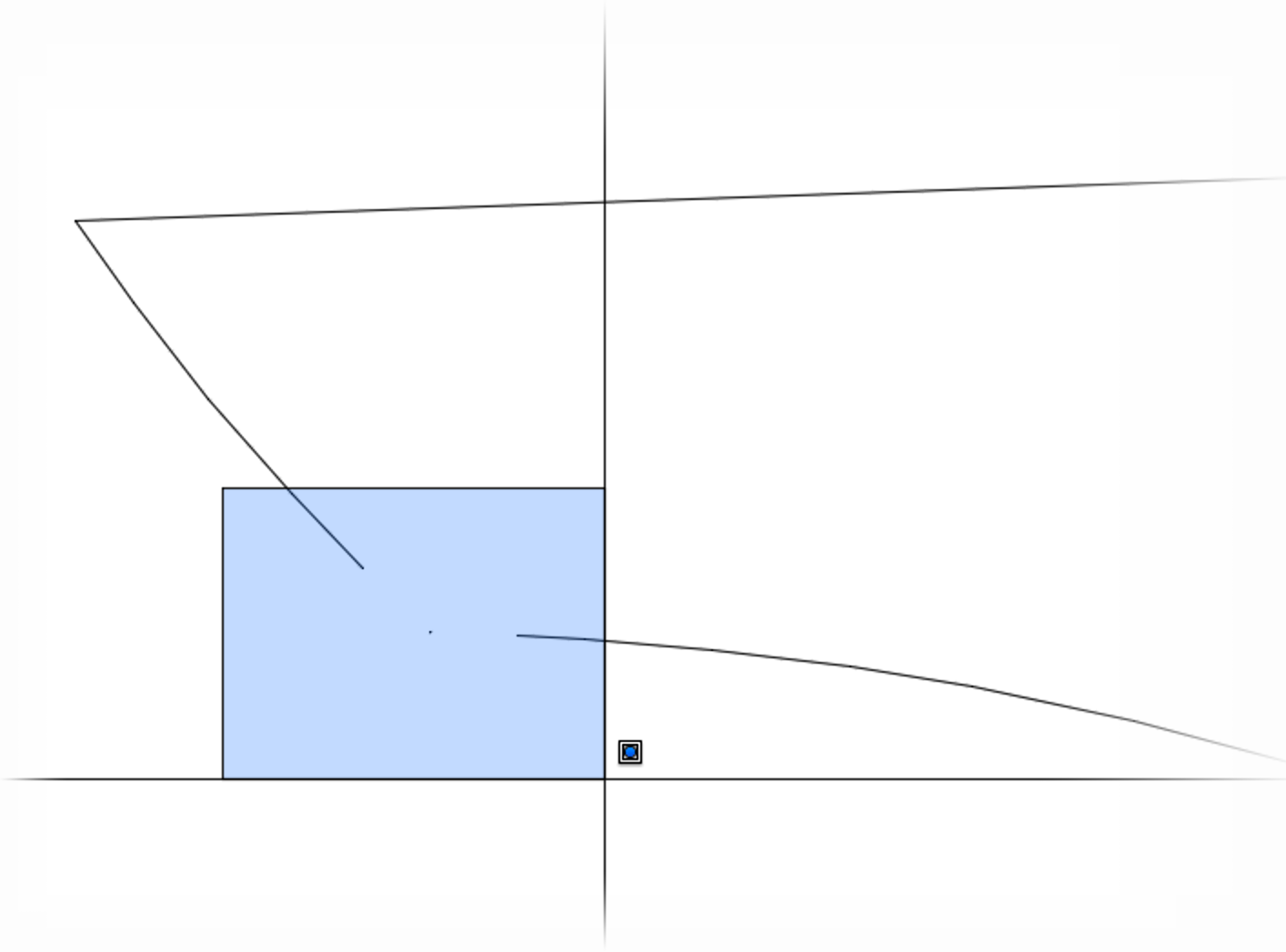

A good way to identify the possible issue is to copy the polyline boundary to the side, and explode it, and start erasing segments. If a segment remains after erasing, or you see a tiny segment in a corner after erasing other segments, you've likely found your problem area.
![Deleting segments in the polyline boundary to locate the problem area](/images/docs/kb/details-graphics/errors/5032/erase.png)
Keep in mind that a single closed polyline can have several different issues with vertices. You may need to investigate multiple areas of the polyline to find all the problematic vertices.
