You Must Select a Division (Saving a Detail)

Issue

You attempted to save a detail using our Save Detail tool, but you were unable to save the detail and instead received the following message:

You must select a division.





You may also have received the error message Error: 'bad argument type: stringp'.



Cause

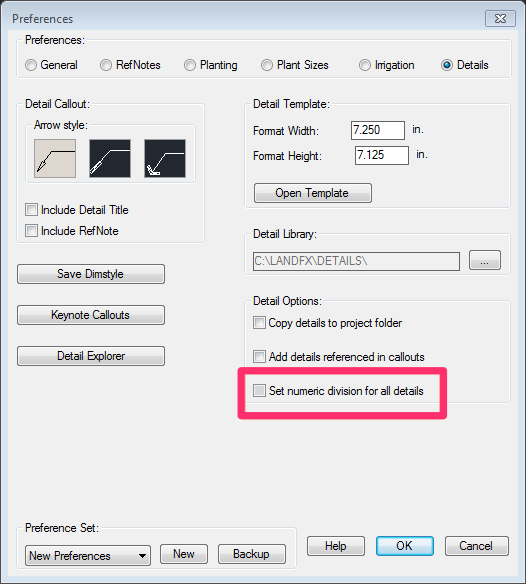

The Details Preferences include an option to Set numeric division for all details







Checking this option creates a Division button in the Select Detail Number dialog box, which you see when you attempt to save a detail.





In this case, you will not be able to save a detail unless you select a CSI division for that detail.





Solution

The solution to this issue depends on whether you want to be able to select CSI divisions for your saved details. Note that if you have this option selected, you will be required to select a CSI division whenever you save a detail.

This option requires a strong familiarity with CSI among your team, as well as a desire to save all details with a CSI number. If this is not the case, and if you do not work for a large firm that does large numbers of projects across the globe, we recommend having this option unchecked in the Details Preferences. For more information on this option, please see the Set numeric division for all details section of our Details Preferences documentation page.



Option 1 (Most Offices): You Don't Want to be Required to Select a CSI Division for Every Saved Detail

Open the Details Preferences, and uncheck the option to Set numeric division for all details.

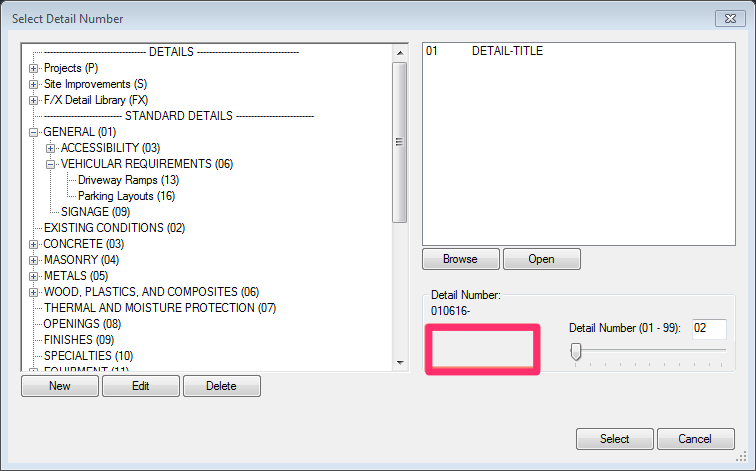

You can then resave your detail without having to select a division. The Select Detail Number dialog box will no longer include the Division button.







Option 2: You Want to Be Required to Select a CSI Division for Every Detail You Save

If this is the case, you simply need to select a CSI division and subdivision for each detail you save. For instructions, see our Selecting CSI Divisions for Your Details documentation section.

Last modified on Nov 15, 2018
