Get the Latest Irrigation Blocks


You've placed irrigation symbols or callouts in a drawing, and you need to replace these blocks with our updated blocks – for example, our equipment and valve callout blocks with background masks.

If you've already placed the older version of a block in a drawing, that version will be defined in that drawing as representing the equipment or callout it's assigned to. If you place another instance of that block without having completed the steps on this page, you'll continue to place the old version. The steps below will show how to tell Irrigation F/X to place the newer versions of our symbol and callout blocks.





Update Blocks for Valve Callouts, Valves, and Auxiliary Equipment

Because the blocks for valve callouts, valves, and auxiliary equipment are all relatively simple and don't require specific rotations or arcs, updating them is a straightforward process.



1. Navigate to the subfolder within the folder LandFX/Blocks/Graphics/Irrigation that contains the blocks you need to replace.


To update valve blocks, go to the folder LandFX/Blocks/Graphics/Irrigation/Valve.

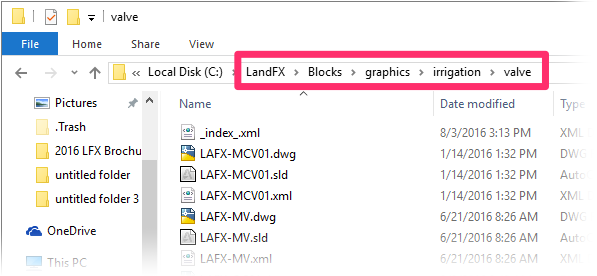

LandFX/Blocks/Graphics/Irrigation/Valve folder

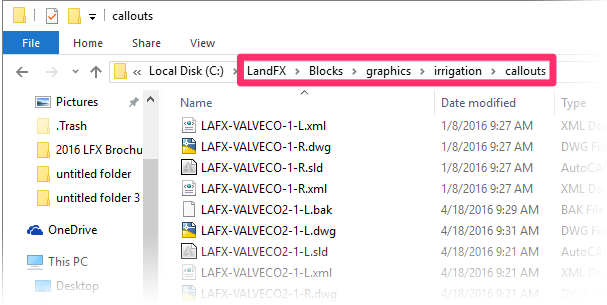

LandFX/Blocks/Graphics/Irrigation/Callouts folder

To update valve callouts, go to the folder LandFX/Blocks/Graphics/Irrigation/Callouts.




To update auxiliary equipment blocks, go to the folder LandFX/Blocks/Graphics/Irrigation/Equipment.

LandFX/Blocks/Graphics/Irrigation/Equipment folder




2. Delete all source files for the blocks you want to update.




Deleting all files whose names begin with LAFX-VALVECO or VALVECO in the LandFX/Blocks/Graphics/Irrigation/Callouts folder

For example, if you're updating your valve callout blocks, delete all files whose names begin with LAFX-VALVECO or VALVECO from the folder LandFX/Blocks/Graphics/Irrigation/Callouts.



3. Open a new CAD file, and place each block you want to update. This step will automatically download the new blocks.

For valve callouts, remember to place both the left (L) and right (R) versions of the callouts.



4. In your file with existing blocks, run our Redefine Block command by typing RedefineBlock in the Command line and pressing Enter. Click each existing block you want to update, including both the left and right versions of each callout you want to update. The blocks will update to the new versions automatically.

For more information on redefining blocks, see our Redefine Block documentation.




Update Blocks for Sprinkler Heads


Block placements for sprinkler heads are a little more complicated than their counterparts for valves, valve callouts, and auxiliary equipment.




Like valves and auxiliary equipment, heads will include a symbol block that depicts the head itself. However, head placements generally include an arc depicting the pattern and rotation angle of the head's water coverage.





As a result, updating head symbol blocks requires a few extra steps.

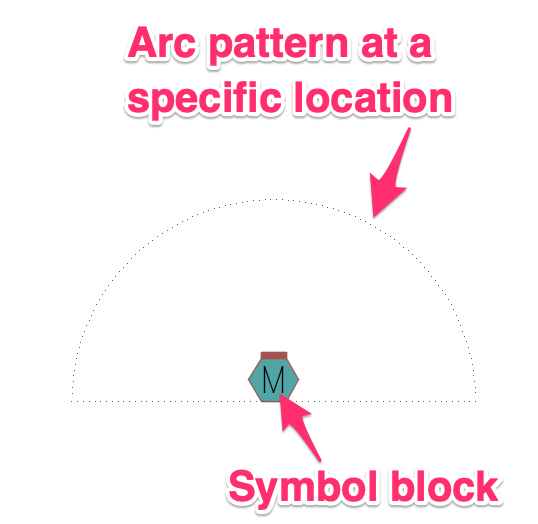

Example sprinkler head placed in drawing showing symbol block and arc pattern at a specific rotation

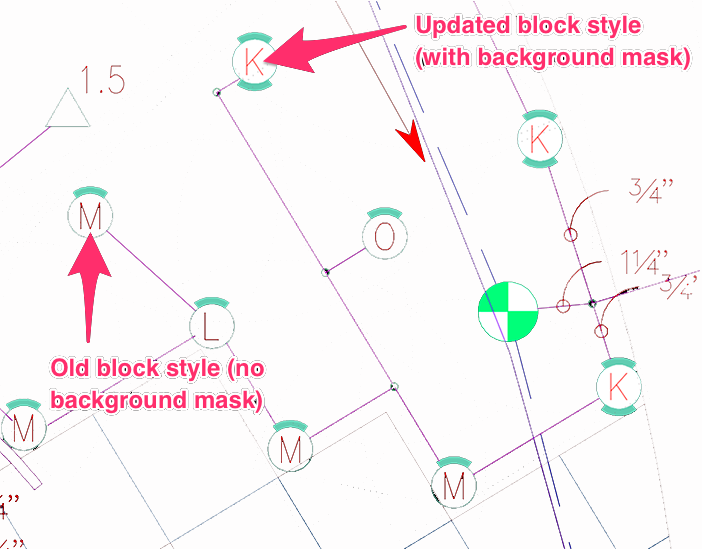

Example drawing showing updated block style with background mask and older block style without background mask

The drawing pictured to the left includes examples of the updated head blocks (which include background masks) and the older blocks (which do not).


In this example, we'll update the older blocks in this drawing to the newer versions with the background masks.

You may have both the older and updated block styles in an existing drawing if you've added multiple equipment models to your project but have only placed some of the models. As soon as you place a symbol block for the first time, you'll automatically download and place the latest version of that block. Thus, you might place one of the updated blocks in a drawing that also includes some of the old blocks.



1. Open the subfolder within the folder LandFX/Blocks/Graphics/Irrigation that contains the blocks you need to update.



For example, if updating rotor blocks, open the folder LandFX/Blocks/Graphics/Irrigation/Rotor.





Delete all files beginning with LAFX.

If you've customized any of the block source files in this folder, back them up to a secure location to avoid losing them. You can then move them back into this folder once you've downloaded all the new versions of our equipment blocks.

Deleting all files beginning with LAFX in the andFX/Blocks/Graphics/Irrigation/Rotor folder



2. Back in your drawing, select any head with an old version of the symbol block.



Then open our Edit Equipment / View Data tool:



F/X Irrigation ribbon, Edit Equipment button


F/X Irrigation ribbon, Edit Equipment button





Irrigation Piping toolbar


Irrigation Piping toolbar




type EquipInfo in the Command line

F/X Irrigation menu


F/X Irrigation menu, Edit Equipment option




Equipment Info dialog box, Replace button

3. The Equipment Info dialog box will open. Click Replace.




4. You'll now go through the steps of adding a head to your project, including selecting a manufacturer, series, model, etc. Select the same manufacturer, series, model, and other data as the original.

In this step, you're essentially replacing a head with the exact same head in your project. In doing so, you're downloading the updated symbol block and assigning it to that head.




5. Right-click on the same head in your drawing, and select the Block Editor option from the menu that opens.

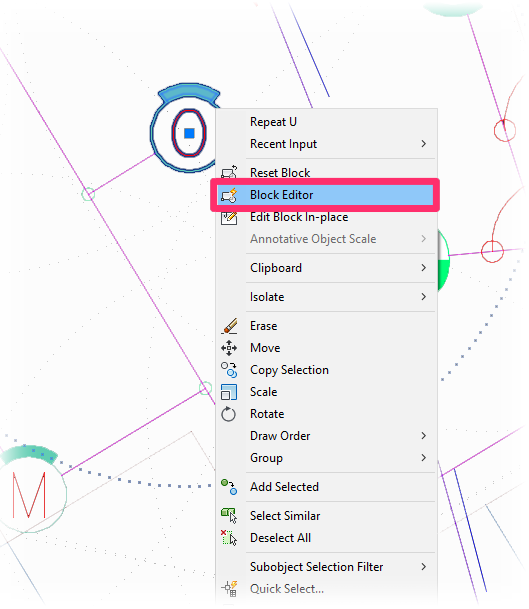

Block Editor menu option




6. The Block Editor will open. Type RedefineBlock in the Command line and press Enter. Use the pickbox to select only the equipment symbol – not the arc.


Selecting the quipment symbol in the Block Editor




7. The updated block will replace the old one.


Updated block replaces the old block in Block Editor




8. Close the Block Editor, and save your changes.

Close Block Editor and save changes



Updated block replaces all existing placements same head in drawing

9. The updated block will replace all existing placements of that head in your drawing.



10. Repeat these steps for each of the other head types you need to update in your drawing.



Turning Off the Background Mask

Don't like the background masks after all? You can easily turn them off by turning off the layers that contain them.



To turn off the background mask for all irrigation equipment symbols, turn off the layer LK-IRRG-EQPM-MASK.


Turning off the layer LK-IRRG-EQPM-MASK in the Layer Properties Manager




To turn off the background mask for valve callouts, turn off the layer LK-ANNO-MASK.

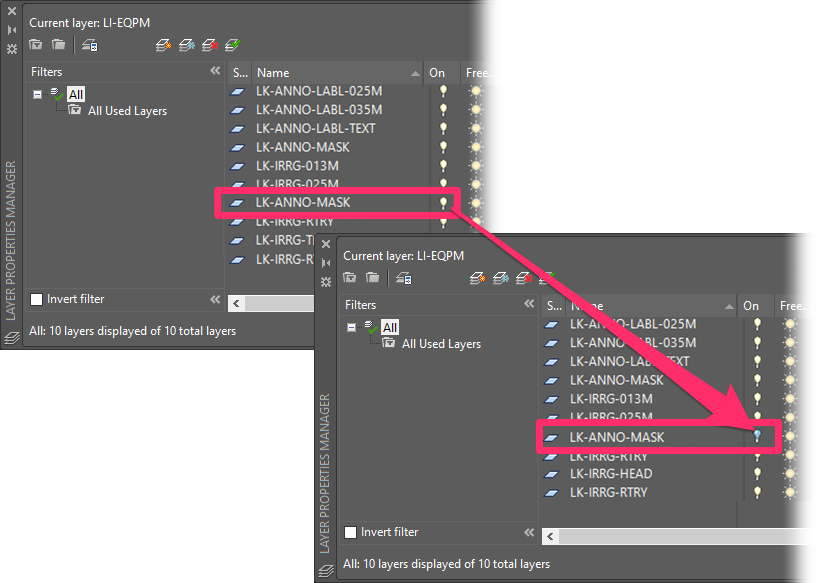

Turning off the layer LK-ANNO-MASK in the Layer Properties Manager
