Plant Symbols Overlapping in Plant Schedule

Issue

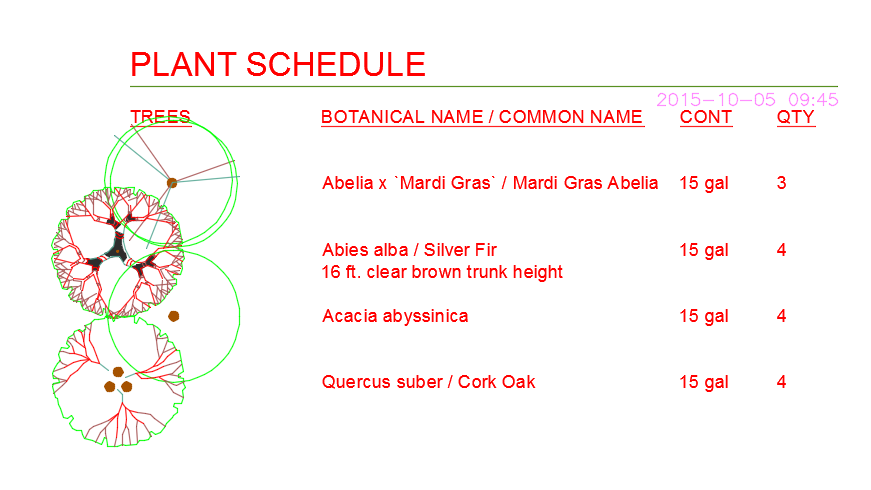

You opted to include your plant symbols in your Plant Schedule, but your symbols are overlapping in the schedule, as pictured below.



Plant symbols overlapping in Plant Schedule



Cause

Some Land F/X users actually prefer having their plant symbols overlap in the Plant Schedule, so we included this ability in the Plant Schedule options.





When you placed your Plant Schedule, you likely had the following settings configured in the Schedule Options.

  • Space between Plants option unchecked
  • Symbols at Plan Size option checked
Plant Schedule dialog box, Space between Plants option unchecked and Symbols at Plan Size option checked





These two settings cause the symbols to overlap in the schedule.





Solution

If you want your plant symbols to appear in the schedule without overlapping, you have two options.



Option 1: Symbols at Plan Size With Space Between Them



  • Space between Plants option checked
  • Symbols at Plan Size option checked
Plant Schedule dialog box, Space between Plants option checked and Symbols at Plan Size option checked

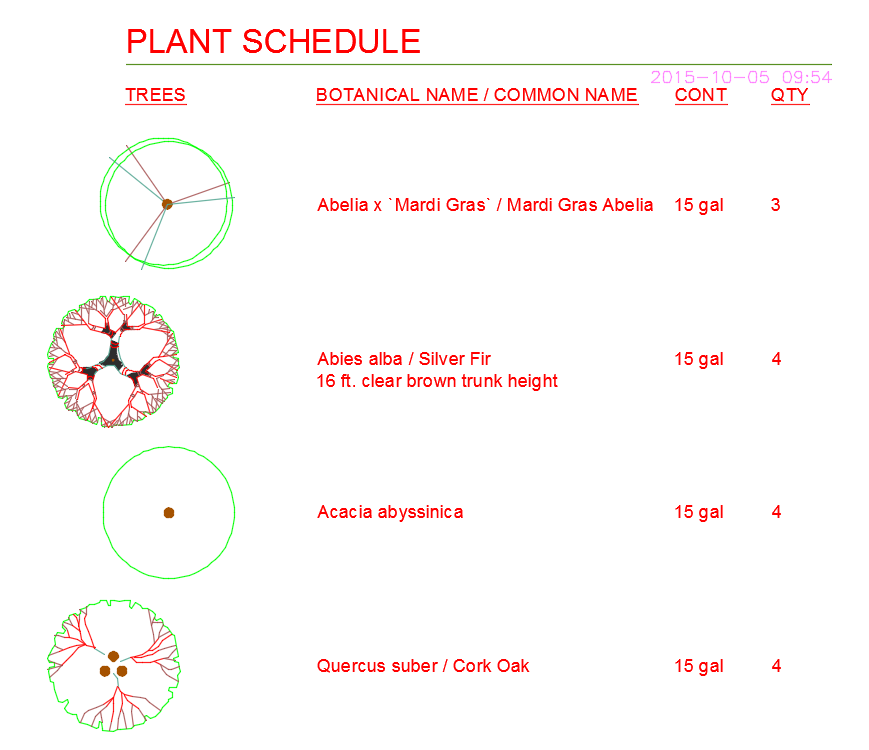

These settings will result in a schedule that includes your plant symbols at the same size as they appear in the planting plan, with sufficient space between the symbols so they don't overlap.



Plant Schedule with symbols at same size as symbols in plan, with adequate symbol spaing



Option 2: Smaller Plant Symbols



  • Space between Plants option unchecked
Plant Schedule dialog box, Space between Plants option unchecked

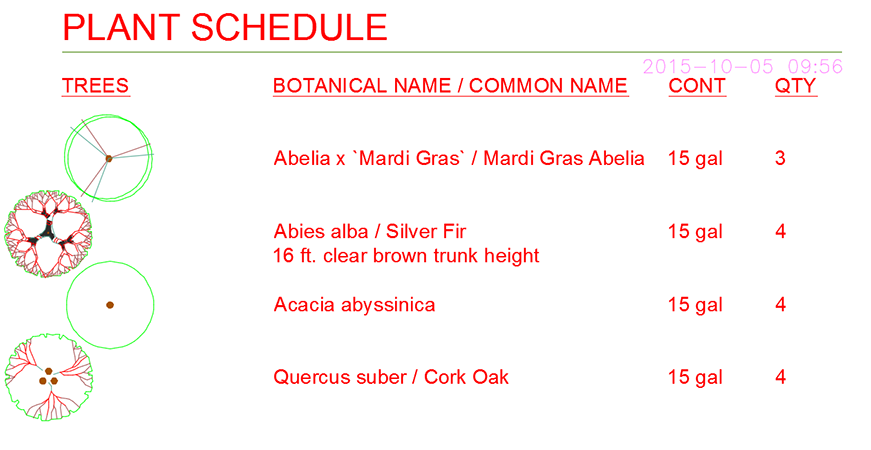

Either of these settings will result in a schedule that includes smaller plant symbols. Because the symbols are so small, they will no overlap when you select this option – and whether or not you check the option to include Space between Plants.



Plant Schedule with smaller plant symbols with no overlap
Last modified on May 26, 2022
