Keyboard Commands – Site



You have a number of options for accessing our tools, including an individual keyboard command for each tool.



Read on for the keyboard command associated with each tool on the F/X Site ribbon. To open any of the following site & hardscape tools, you can type the corresponding keyboard command in the AutoCAD Command line.





Managers Pane



Button

Tool

Keyboard Command

RefNotes Manager

RefNotes



RefNotes Schedule

RefNoteSchedule



Concept Manager

FX_ConceptGraphics



Zoning Manager

FX_Zoning



Site Development (Estimator) Manager

FX_SiteDevelopment



Site Amenities Manager

FX_Amenities



Lighting Manger

FX_LightingManager



Grading Manager

FX_GradingManager



Site Color

SiteColor



Site Color Render

Site_ColorRender



3D Connection

FX_Site_3DExport







Sheet Setup Pane



Button

Tool

Keyboard Command

Scale

SetDrawScale



New Work Area

DefineWorkArea



New UCS

FX_UCS



Restore UCS

FX_UCSRestore

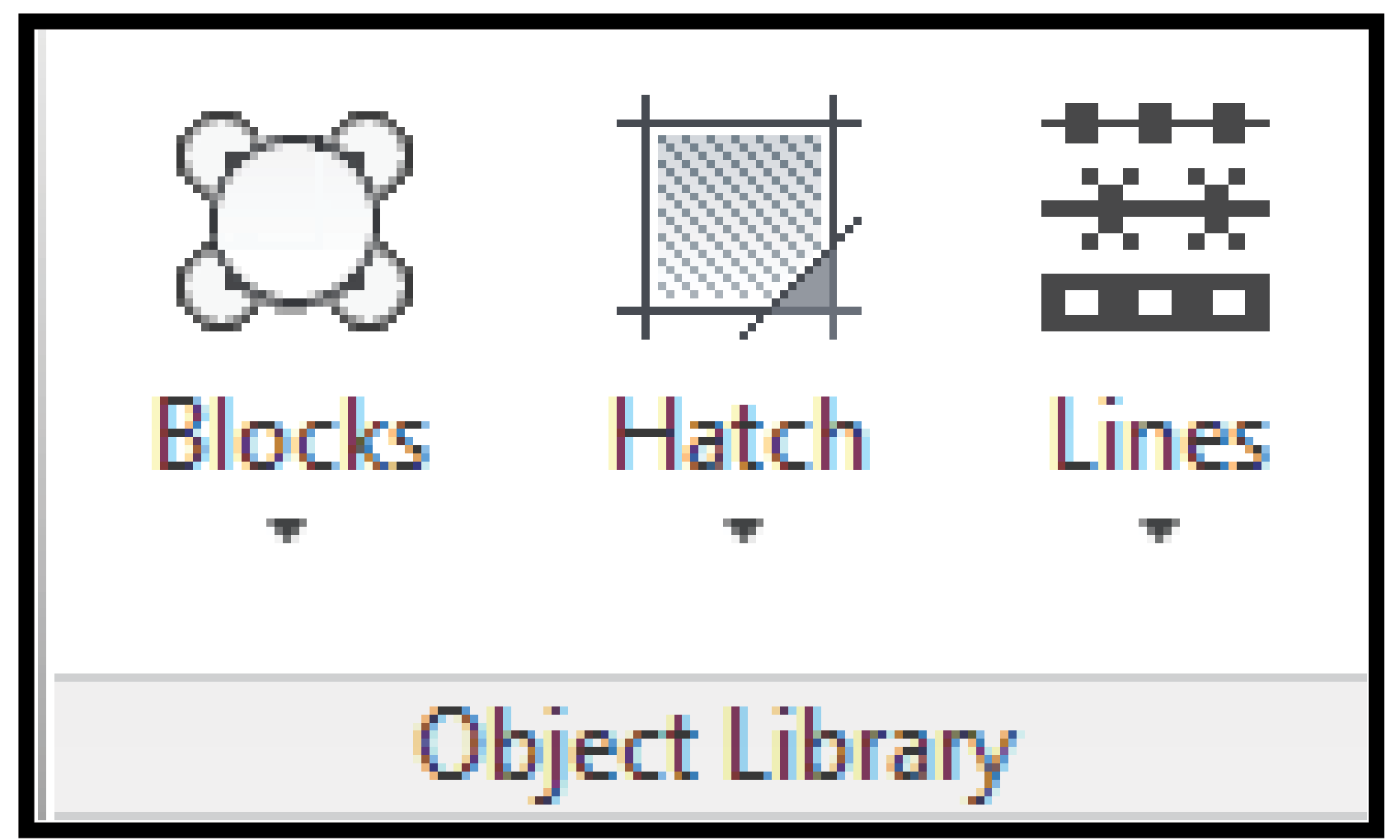

Object Library Pane & Flyouts

Button

Tool

Keyboard Command

Plan Graphics

PlanGraphics



Elevation Graphics

ElevationGraphics



Discipline Graphics

DisciplineGraphics



Generic Plants

FX_PlaceGenericTrees



Save Block

FX_AddBlock



Hatch

FX_SiteHatch



Save Hatch

FX_AddHatch



Delete Hatch

DeleteHatch



Railing

FX_Railing



Scallop Line

FX_ScallopLine



Random Pointy Line

RandomArcLine



Cloud Line

FX_CloudLine



Spline

DrawSpline



Poly Arc Line

PolyArc



Random Cloud Line

RandomCloudLine







Site Annotation Pane & Flyouts

Button

Tool

Keyboard Command

Text Manager

FX_Fonts



Delete Font

DeleteFont



Reload All F/X Text Styles

REAT



Aligned Dimension

FX_SiteDimAligned



Linear Dimension

FX_SiteDimLinear



Angular Dimension

FX_SiteDimAngular



Arc Dimension

FX_SiteDimArc



Radius Dimension

FX_SiteDimRadius



Diameter Dimension

FX_SiteDimDiameter



Center Mark Dimension

FX_SiteDimCenter



Continue Dimension

FX_SiteDimContinue



Baseline Dimension

FX_SiteDimBaseline



Leader With Text

DetailLeaderText



MText Leader Frame

FX_MTextLeaderFrame



MText Leader Frame

FX_MTextLeaderFrame



Text Leader Tick

FX_TextLeaderPline



Text Leader Tick

FX_TextLeaderPline



Text Leader Dot

FX_TextLeaderDot



Thick Leader Tick

FX_ThickLeaderPline



Thick Leader Wide

FX_ThickLeaderWide



Thick Leader Dot

FX_ThickLeaderDot



Arc Area Leader

FX_ArcAreaLeader



Line Area Leader

FX_LineAreaLeader



Loop Leader

FX_LoopLeader



Line Leader Dot

FX_LineLeaderDot



Arc Leader Big

FX_ArcLeaderBig



Line Leader Big

FX_LineLeaderBig



Line Leader Big

FX_LineLeaderBig



Arc Leader Wide

FX_ArcLeaderWide



Line Leader Wide

FX_LineLeaderWide



Tick Leader

FX_LineLeaderPline



Arc Leader Dim

FX_ArcLeaderDim



Line Leader Dim

FX_LineLeaderDim



RefNote Callout

RefNoteCallout



Detail Callout

FX_InsertDetailCallout



Northing/Easting Points

FX_PlaceNorthingEastingPt



Spot Elevation

FX_PlaceSpotElevation



Slope Callout

FX_PlaceSlopeCallout



Photo Callout

FX_SitePhotoCallout



Callouts

FX_DisciplineCallouts







Tool Kit Pane & Flyouts





Button

Tool

Keyboard Command

Copy along Polyline

FX_SiteCopyPline



Copy along Line

FX_SiteCopyLine



Copy along Arc

FX_SiteCopyArc



Triangular Array

FX_SiteTriangularArray



Rectangular Array

FX_SiteRectangularArray



Mirror

FX_SiteMirror



Verify Callouts

FX_VerifyRefNotes



Highlight Object

FX_SiteHighlight



Match Object

FX_SiteMatchObject



Match Properties

FX_SiteMatchProp



Edit Object/Block Data

FX_ObjInfo



Xhair Angle (Snap Angle)

FX_XHair



Area Total

AreaTotal



Length Total

LengthTotal







Preferences Flyouts



Button

Tool

Keyboard Command

RefNotes Preferences

FXPreferences (then select the RefNotes option)



Details Preferences

FXPreferences (then select the Details option)







Help Pane & Flyouts



Button

Tool

Keyboard Command

Help

FX_Help



Support

TechSupport



Update

FX_Update



AutoCAD keyboard commands allow you to access your favorite tools by typing a simple phrase. The ALIASEDIT command allows you to customize the keyboard to access the CAD commands of your choice. For more information, see our Alias Edit PDF.

Keyboard commands added with F/X CAD 2018: With F/X CAD 2018, we added some additional keyboard commands. Find out more.

Last modified on Thursday, 20 September 2018 08:20
