Projects Tool: Planting F/X for Rhino Plugin
Updated on: April 03, 2025
Quick video
The Projects tool allows you to access a list of your Land F/X projects created in Rhino, CAD, SketchUp, or Revit.
Projects Tool Overview
Open the Projects tool:
LandFX toolbar, Projects button

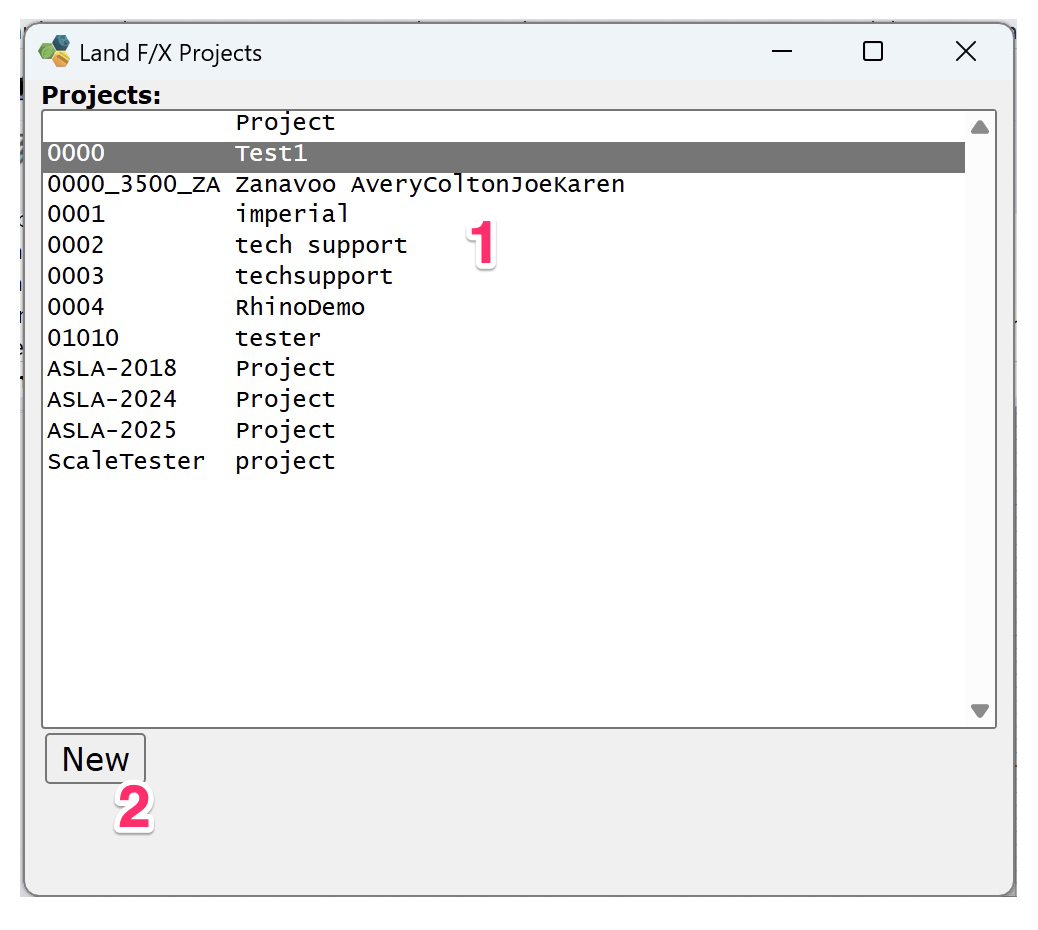

The Land F/X Projects dialog box will open. Here, you'll see a list of all Land F/X projects you've created in Rhino, or created initially in CAD on Cloud Data or a different 3D platform.
1. List of your Land F/X projects on Cloud Data, ordered by project number and showing project name. Click a project to open it.
2. New: Create a new project number to add to the list and assign to the Rhino design you currently have open.
Starting a New Land F/X Project

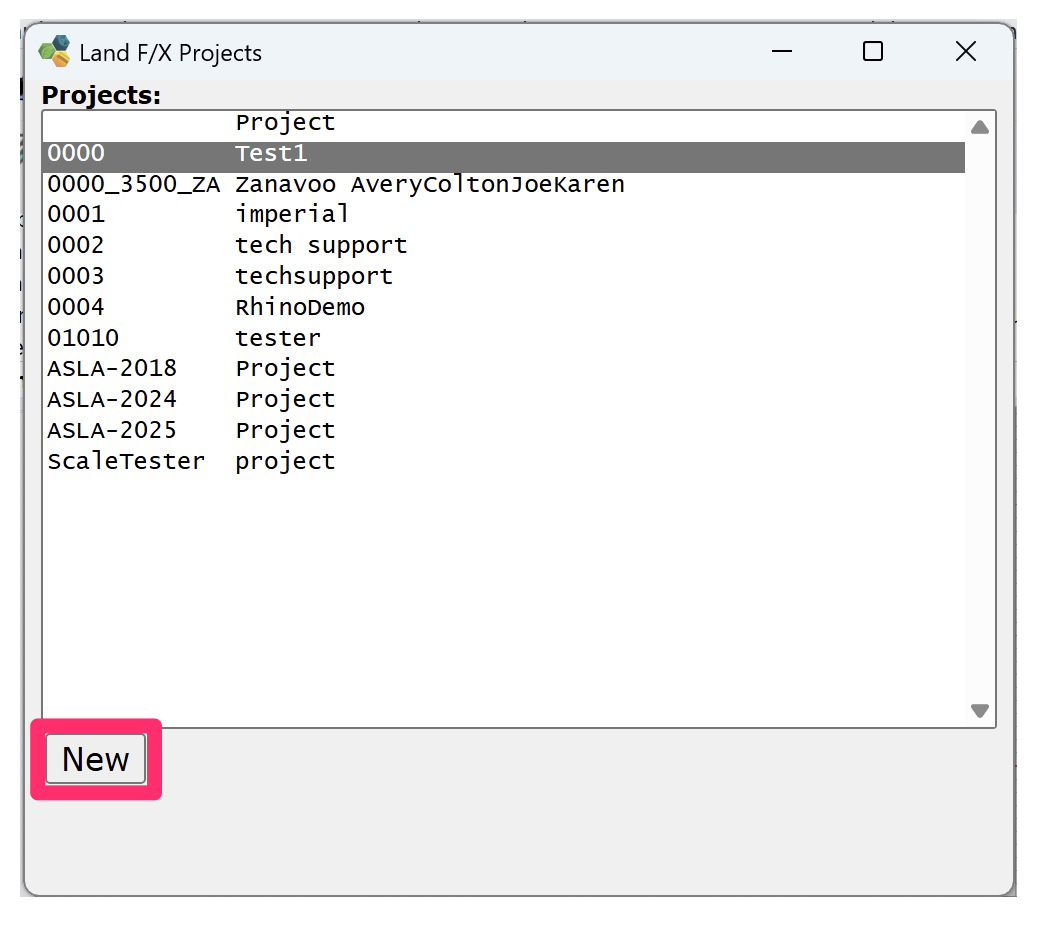

Click the New button in the Land F/X Projects dialog box.
The New Project dialog box will open. Enter a unique Project Number and Project Name.
Click OK. You've now created a new Land F/X project and can begin designing in Rhino using our plugin.
