Create a Customized Scale Bar Block

Your installation includes a number of default scale bar blocks to act as a scaling legend in your drawings. These "smart" blocks are configured to adapt to any scale you set in a drawing by displaying that scale. They will also include reference numbers for the scale tick marks in increments that make sense for your scale.



If you use a nominal scale, such as 1"=20', 1"=100', etc., the reference numbers will be rounded, logical numbers. Here's an example:

Our default scale bar SCALE-01 when placed in a drawing with the scale set to 1" = 20'



But what about if you need to work in a less nominal scale, such as 3/32"=1'? In this case, our default scale bars will display increments that make mathematic sense for that scale, but aren't necessarily round numbers. Here's an example:

Our default scale bar SCALE-01 when placed in a drawing with the scale set to 3/32" = 1'



In these cases, if you'd like your scale bar to display evenly rounded reference numbers (such as 10, 20, and 30; or 20, 40, and 60), you'll need to create a customize scale bar that is configured to show those reference numbers.

Set Your Scale

Before you can configure your own scale block, you'll need to ensure that you have your scale set correctly in both the Plot Scale dialog box and in Paper Space, and that these scales match each other.



Open a fresh drawing, and set your scale and units in the Plot Scale dialog box using our Scale tool.





In our example, we'll set our scale to 3/32 inch = 1'0" (one foot), and our Drawing Units to Architectural Inches.







Also make sure your units are set correctly in the AutoCAD Drawing Units dialog box.





Now open Paper Space and set a scale that matches the scale you set in the Plot Scale dialog box. This step is extremely important, as you'll be toggling between Paper and Model Space to create your scale block.







In Paper Space, set your scale by selecting the appropriate option from the scale menu, pictured to the right.







The scale menu is available in the Status Bar toggles in AutoCAD or F/X CAD 2015.







In our example, we will set our Paper Space scale to 3/32" = 1'-0" to match the scale we've set in the Plot Scale dialog box.

Create or Place Your Scale Bar Block

Now that you have your scale set correctly in both the Plot Scale dialog box and in Paper Space, you can begin working on your custom scale block. At this point, you have two options:



Option 1: Draw or Place Your Own Scale Bar

If desired, you can draw your scale bar in Model Space (in a fresh drawing) as you want it. You can also place an existing scale bar block into Model Space – again, in a fresh drawing.



Option 2: Use Our Default Scale Bar Block

We offer the above-mentioned default scale bar blocks, so you won't need to draw a scale bar if the general appearance of one of our blocks works for you. To use one of the existing scale bars, open the Discipline Graphics dialog box and select the North/Scale option from the menu. For specific instructions on accessing this dialog box, visit our Discipline Graphics documentation section.

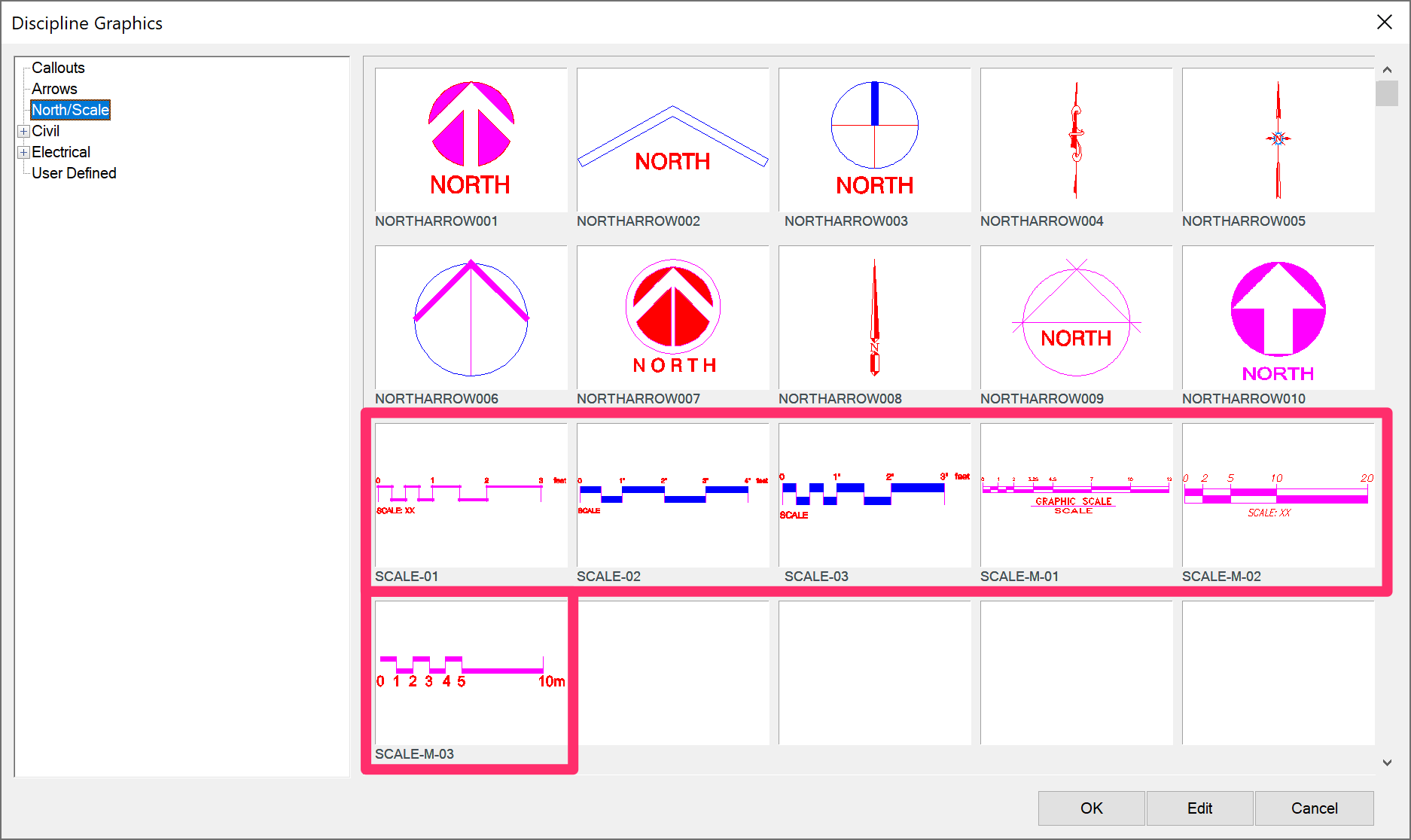

The North/Scale blocks include several scale bar blocks, all of which have names that start with SCALE-. In the image below, the first three SCALE blocks are meant for drawings with Imperial units, and the last three are meant for metric units.





Select a scale bar block, and place it in Model Space.

Scale Your Scale Block Correctly

Whether you drew your own scale bar or placed an existing one, you'll now have a scale bar in Model Space. The next step is to match the scale bar to the scale you originally set for this new drawing. In our example, we set our scale to 1/32 inch = 1 foot.

We recommend turning on the CAD OSNAP function to complete these steps. OSNAP makes it easy to snap to specific points on your scale bar.

Draw a polyline originating from the bottom left corner of the scale bar. The Command line will prompt you to Specify next point. Extend the polyline straight out to the right, along the bottom of the scale bar. Rather than clicking to set the next point, type the first increment in feet, inches, or meters that you would like to appear above your scale bar. In our case, we want our scale bar to show increments of 10 feet. Therefore, we'll type 10' for the length of the polyline.



Press the Esc key to exit the polyline function. You will now have a horizontal polyline with the exact length of the first increment you'd like to set for the scale bar according to the scale you've set. In our case, we've drawn a 10-foot line. Note that our 10-foot line doesn't quite match the 10-foot length shown in the scale bar itself. That's OK – we're about to fix that.



Type Scale in the Command line. You'll be prompted to Select Objects. Select the scale bar block but not the polyline you drew, then press Enter.



The Command line will prompt you to Specify base point. Click the bottom left corner of the scale bar, where it meets the polyline.



You'll be prompted to Specify scale factor or [Copy/Reference]. Type R for Reference, and press Enter.



You'll be prompted to Specify reference length. Click the bottom left corner of the scale bar, where it meets the polyline.

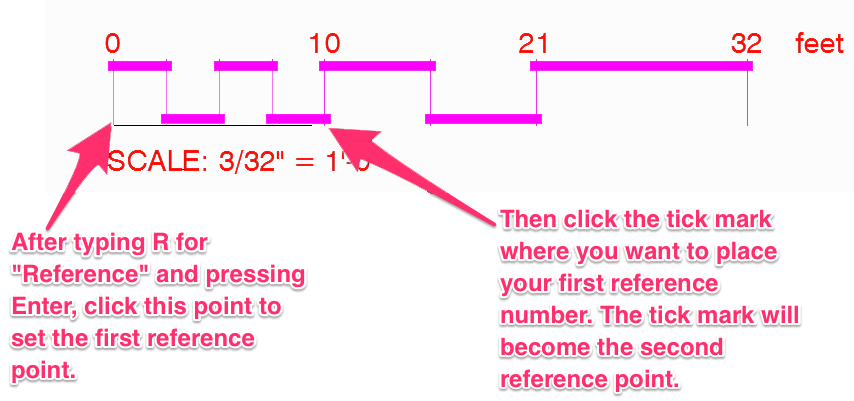

You'll be prompted to Specify second point. Click the tick mark where you want to put the first reference number.

You can now resize your scale bar. Scale down so that the tick mark you set as your reference point meets the end of your polyline.

Test Your Scaling

You can test the accuracy of your scaling by running the AutoCAD Distance command. Type DIST in the Command line, and press Enter.



The Command line will prompt you to Specify first point. Click the point where the beginning of your polyline meets the bottom left corner of the scale bar.



You will then be prompted to Specify second point. Click the point where the end of your polyline meets the first numbered tick mark of the scale bar.



The Command line will show the actual distance between the two points, which should match the length of your polyline as you drew it. In our case, our distance is 10 feet, which means we have scaled the bar correctly.





Change Your Reference Numbers

Now that you have your scale bar block scaled correctly, you'll need to change the reference numbers to match the actual distances they represent.



First, explode your scale bar block: Type Explode in the Command line, and select the scale bar.

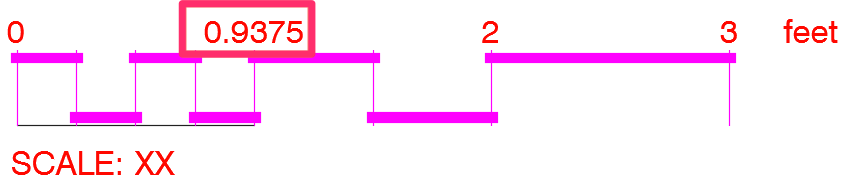

Your scale bar will now be exploded into its editable components. Note also that the tick reference numbers will change to 0, 1, 2, and 3, as pictured below, and the Scale will change to XX.



Open Paper Space, and verify that the scale is still set correctly in the viewport. If not, set it to the correct scale. In our case, our scale is still set at 3/32" = 1', which is correct for our purposes.





Run the Change Space command to move the exploded block into Paper Space: Type CHSPACE in the Command line. When prompted to Select objects, select the entire exploded scale bar block.



Now type DIST in the Command line, and measure the distance between the 0 and 1 ticks of the scale bar.

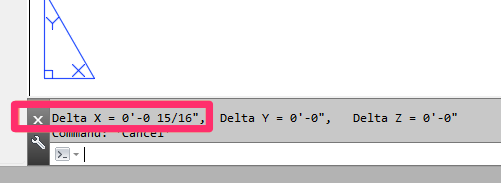

The Command line will display the actual distance between the two points in Paper Space. In our case, the distance is 15/16", or 0.9375 inches.



You can now edit the tick reference numbers on your scale bar to reflect the actual scaled distance between the ticks in Paper Space – the number you see in the Command line as pictured above.

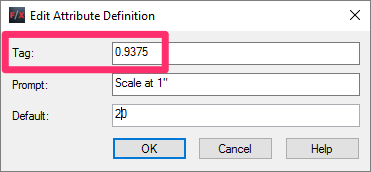

These numbers are attributes within the exploded block. To edit one of these numbers, simply double-click it to open the Edit Attribute Definition dialog box (pictured below).





Enter the appropriate number in the Tag field.







For the first reference number, enter the decimal version of the distance between the ticks as shown above. In our example, we'll enter 0.9375, which is the decimal version of 15/16 inches.







When you click OK, the number you entered will appear at the first tick mark on your scale bar.

Edit the two remaining reference numbers in the same way, entering 2 x the original distance for the second reference number, and 3 x the original distance for the third. In our example, we'll enter 1.875 (or 2 x 0.9375) for the second reference number, and 2.8125 (3 x 0.9375) for the third reference number.





Your scale bar will now be scaled correctly. In our case, every 15/16 inch (or 0.9375 inch) will represent 10 feet, since we scaled the ticks to a 10-foot polyline.



Save the Scale Bar Block into Our System

You can now save your scale bar into our system. With your exploded block still open in Paper Space, open our Save Block tool.

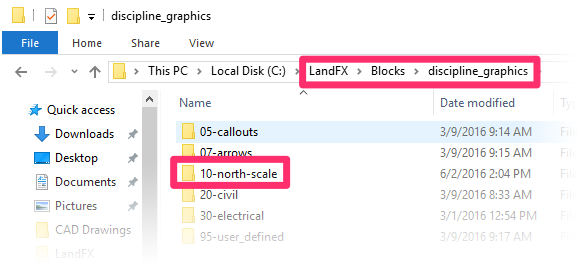

Save the block into the folder LandFX/Discipline Graphics/North Scale.



Once you've saved your scale bar block in this folder, it will be available in the North/Scale library, and you can place it in future drawings using the Discipline Graphics tool. In our example, we've saved our scale bar block under the name Scale-04.



If necessary, you can shoot a better thumbnail slide for the new scale bar using the MSLIDE command. See our Thumbnail Slide documentation section for specific instructions.



Now, when you place your scale bar in a drawing of the same scale you set when you made it, the bar will display that scale, as well as tick reference numbers in the increments you set when you created it.



In our case, as long as we set our drawing scale to 3/32"=1', and our units to Architectural Inches, our scale bar will display the same scale, along with tick mark references of 10, 20, and 30 feet. In this example, the tick marks will be 0.9375 inches apart, with 0.9375 inches representing 10 feet.

Remember: Customizing a scale bar in this way will only apply to the scale you use when you create the scale bar. If you want to use a custom scale bar in other drawing scales (such as 1/62" = 1', 1/8" = 1', etc.), you'll need to create a new scale bar specifically geared toward each scale you plan to use.
