Plan or Elevation Graphics Dialog Box Is Not Loading Completely
Updated on: December 22, 2025
Issue
You tried to place a generic block or Amenity Reference Note, but the Plan Graphics or Elevation Graphics dialog box is failing to load completely.
Cause
Our block preview dialog boxes are Web-based. Several possible issues can prevent these dialog boxes from loading, which in turn causes a lag in the formatting of the block previews.

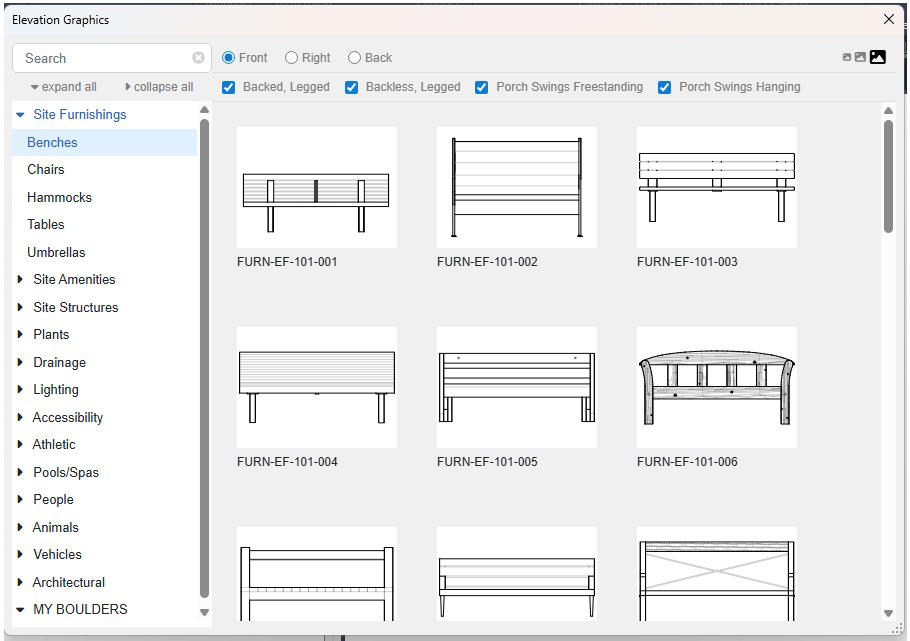

Try restarting CAD and opening the block preview dialog box again. It should now load properly
If the dialog box is still not loading properly, send us a technical support ticket detailing your issue, and we can take further diagnostic steps.
